G3PJ-215B DC12-24
lmages are for reference only.G3PJ-215B DC12-24
SSR RELAY SPST-NO 18A 24-240V
DatasheetSSR with Integrated Heat Sink
57,252 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPST-NO (1 Form A) SSR with Integrated Heat Sink
G3PJ-215B DC12-24
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Omron Automation and Safety |
| Series | G3PJ |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | DIN Rail |
| Circuit | SPST-NO (1 Form A) |
| Output Type | AC, Zero Cross |
| Voltage - Input | 12 ~ 24VDC |
| Voltage - Load | 24 V ~ 240 V |
| Load Current | 18 A |
| Termination Style | Screw Terminal |
| Operating Temperature | -30°C ~ 80°C |
| Package / Case | SSR with Integrated Heat Sink |
| Supplier Device Package | - |
| Approval Agency | CE, cULus, TUV |
| Grade | - |
| Qualification | - |
| Base Product Number | G3PJ-215 |
| On-State Resistance (Max) | - |
| Product Attribute |  |
 |
 |
 |

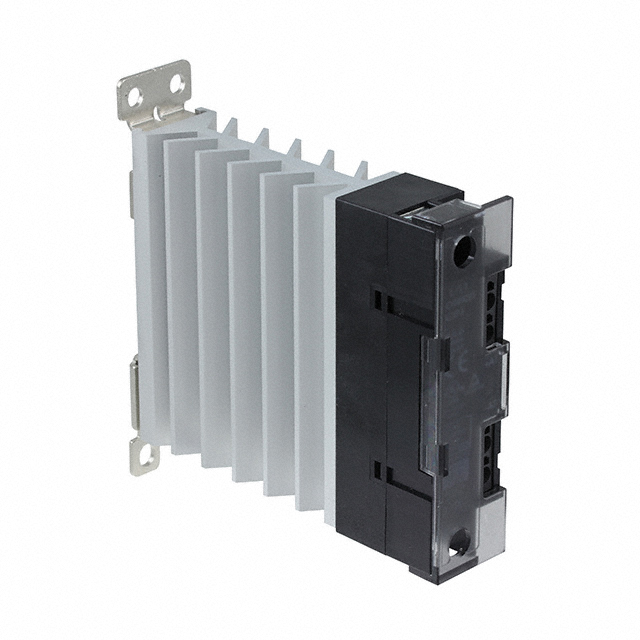

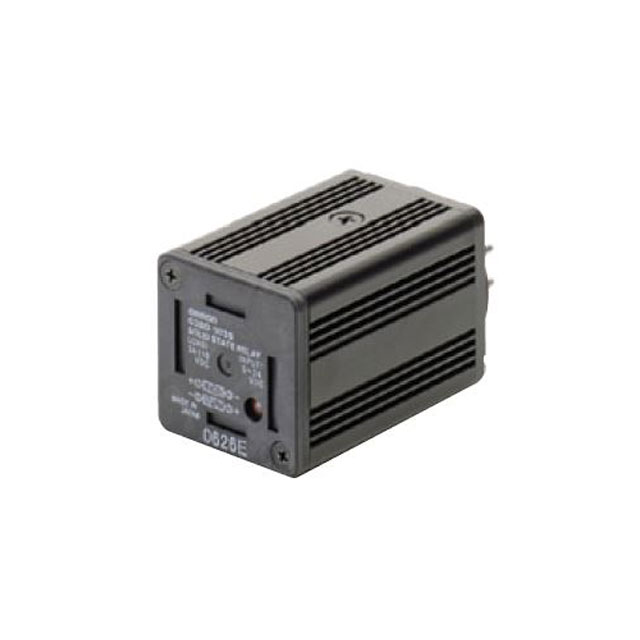

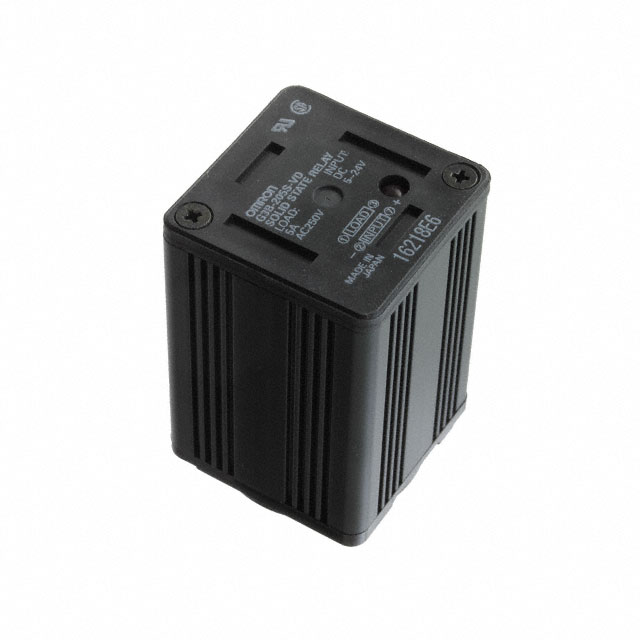

| Part Number | G3PJ-215B-PU DC12-24 | G3B-205S-DC4-30 | G3B-205S-VD DC5-24 | G3BD-103S DC5-24 |
| Manufacturer | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | |
| Description | SSR RELAY SPST-NO 18A 24-240V | SSR RELAY SPST-NO 5A 75-264V | SSR RELAY SPST-NO 5A 75-264V | SSR RELAY SPST-NO 3A 3-125V |
| Series | G3PJ | G3B | G3B | G3BD |
| Packaging | Bulk | Bulk | Bulk | Bulk |
