G3R20MT17N
lmages are for reference only.G3R20MT17N
SIC MOSFET N-CH 100A SOT227
DatasheetSOT-227-4, miniBLOC
13,100 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 1700 V 100A (Tc) 523W (Tc) Chassis Mount SOT-227
G3R20MT17N
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | GeneSiC Semiconductor |
| Series | G3R™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1700 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Rds On (Max) @ Id, Vgs | 26mOhm @ 75A, 15V |
| Vgs(th) (Max) @ Id | 2.7V @ 15mA |
| Vgs (Max) | ±15V |
| Input Capacitance (Ciss) (Max) @ Vds | 10187 pF @ 1000 V |
| FET Feature | - |
| Power Dissipation (Max) | 523W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Supplier Device Package | SOT-227 |
| Package / Case | SOT-227-4, miniBLOC |
| Base Product Number | G3R20 |
| Gate Charge (Qg) (Max) @ Vgs | 400 nC @ 15 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

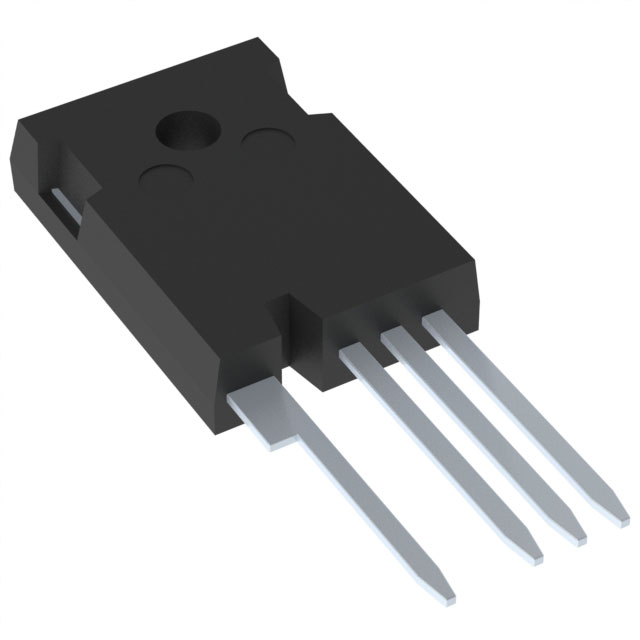

| Part Number | G3R20MT12K | G3R20MT12N | G3R20MT17K | BS170PSTOA |
| Manufacturer | GeneSiC Semiconductor | GeneSiC Semiconductor | GeneSiC Semiconductor | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SIC MOSFET N-CH 128A TO247-4 | SIC MOSFET N-CH 105A SOT227 | SIC MOSFET N-CH 124A TO247-4 | MOSFET N-CH 60V 270MA E-LINE |
| Series | G3R™ | G3R™ | G3R™ | - |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR) |
