G40P03K
lmages are for reference only.G40P03K
P-30V,RD(MAX)<9.5M@-10V,RD(MAX)<
DatasheetTO-252-3, DPAK (2 Leads + Tab), SC-63
22,174 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
P-Channel 30 V 40A (Tc) 78W (Tc) Surface Mount TO-252
G40P03K
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Goford Semiconductor |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 40A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 10mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2622 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 78W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252 |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 50 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

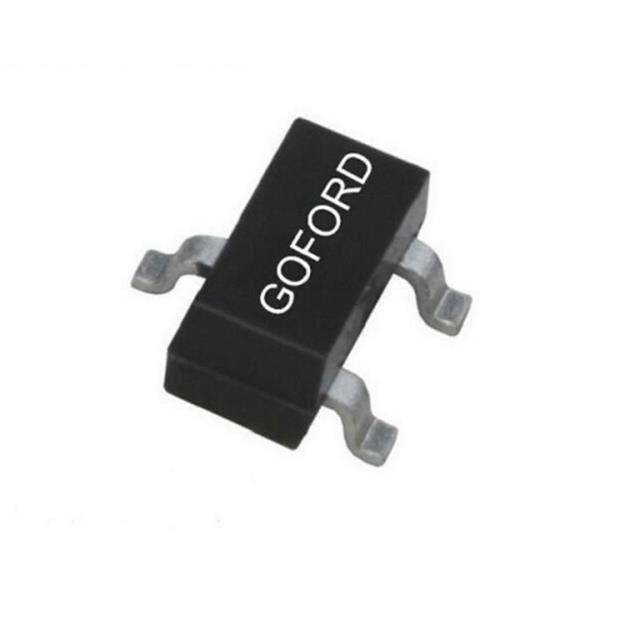

| Part Number | G40P03D5 | G29 | GT025N06AT | GSGP0R703 |
| Manufacturer | Goford Semiconductor | Goford Semiconductor | Goford Semiconductor | Good-Ark Semiconductor |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | P-30V,-35A,RD(MAX)<10M@-10V,VTH- | P15V,RD(MAX)<30M@-4.5V,RD(MAX)<4 | N60V, 170A,RD<2.5M@10V,VTH1.2V~2 | MOSFET, N-CH, SINGLE, 282.00A, 3 |
| Series | TrenchFET® | TrenchFET® | SGT | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
