G64V35333HR
lmages are for reference only.G64V35333HR
CONN EDGE DUAL FML 168POS 0.024
Datasheet-
10,702 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
168 Position Female Connector Non Specified - Dual Edge Gold 0.024" (0.60mm) Black
G64V35333HR
| Category | Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Series | Mini Cool Edge 0.60mm |
| Card Type | Non Specified - Dual Edge |
| Gender | Female |
| Number of Positions/Bay/Row | 14; 28; 14; 28 |
| Number of Positions | 168 |
| Card Thickness | 0.062" (1.57mm) |
| Number of Rows | 2 |
| Pitch | 0.024" (0.60mm) |
| Read Out | Dual |
| Features | Board Guide, Board Lock, Solder Retention |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Type | - |
| Color | Black |
| Flange Feature | - |
| Operating Temperature | -40°C ~ 85°C |
| Material - Insulation | Thermoplastic |
| Base Product Number | - |
| Termination Rows | - |
| Product Attribute |  |
 |
 |
 |

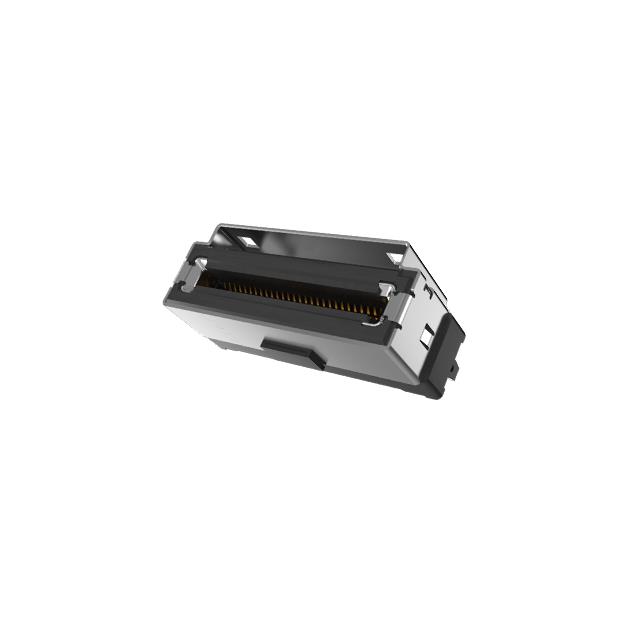

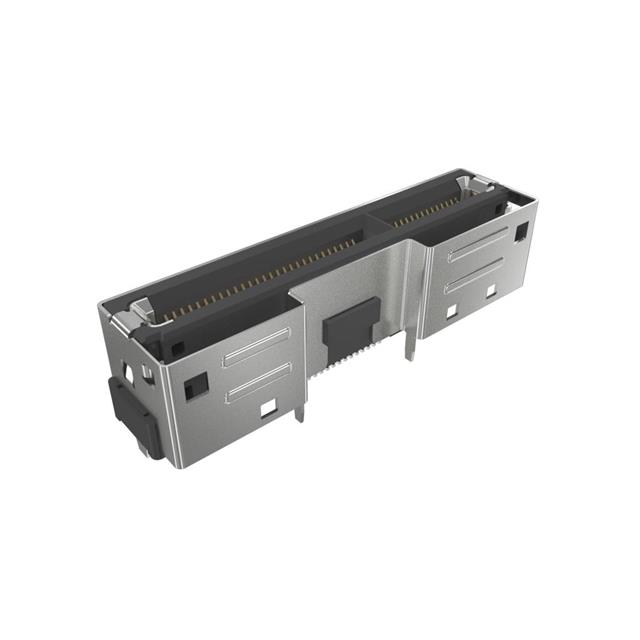

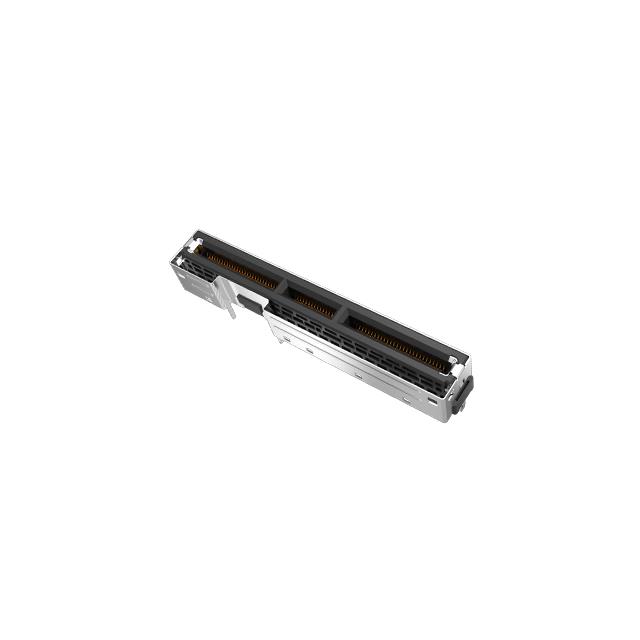

| Part Number | G64V31312HR | G64V32312HR | G64V34312HR | G03V21322HR |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | CONN EDGE DUAL FMALE 56POS 0.024 | CONN EDGE DUAL FMALE 84POS 0.024 | CONN EDGE DUAL FML 140POS 0.024 | MULTI-TRAK 16X+PWR 2.20MM |
| Series | Mini Cool Edge 0.60mm | Mini Cool Edge 0.60mm | Multi-Trak | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
