G6AK-434P-ST40-US DC24

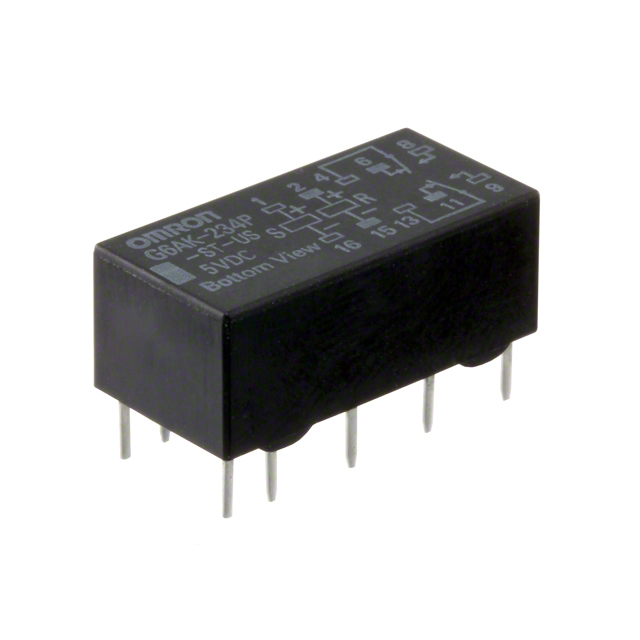

lmages are for reference only.G6AK-434P-ST40-US DC24
RELAY GEN PURPOSE 4PDT 1A 24V
Datasheet-
55,137 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 4PDT (4 Form C) Through Hole
G6AK-434P-ST40-US DC24
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | G6A |
| Packaging | Tube |
| RoHS Status | |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 250VAC, 220VDC - Max |
| Load - Max Switching | 250VA, 220W |
| Coil Type | Latching, Dual Coil |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | - |
| Operate Time | 7 ms |
| Release Time | 7 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Base Product Number | G6AK-4 |
| Coil Current | 15 mA |
| Coil Resistance | 1.6 kOhms |
| Product Attribute |  |
 |
 |
 |

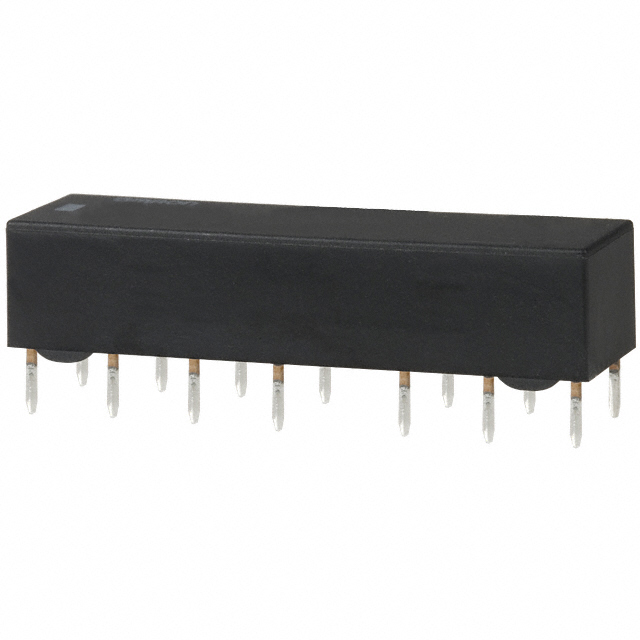

| Part Number | G6AK-434P-ST-US DC12 | G6AK-434P-ST-US-DC24 | G6AK-434P-ST-US-DC5 | G6JU-2FL-Y-TR DC9 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | RoHS Compliant | |||
| Description | RELAY GEN PURPOSE 4PDT 1A 12V | RELAY GEN PURPOSE 4PDT 1A 24V | RELAY GENERAL PURPOSE 4PDT 1A 5V | RELAY TELECOM DPDT 1A 9V |
| Series | G6A | G6A | G6A | G6J-Y |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR) |
