G861AB04121TS5HR
lmages are for reference only.G861AB04121TS5HR
PROTECT HEADER 2.54MM PITCH STR
Datasheet-
15,434 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Connector Header Through Hole 4 position 0.100" (2.54mm)
G861AB04121TS5HR
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | G861 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Length - Mating | 0.299" (7.60mm) |
| Contact Length - Post | 0.134" (3.40mm) |
| Overall Contact Length | 0.559" (14.20mm) |
| Insulation Height | 0.327" (8.30mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 250VAC/DC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | Flash |
| Applications | - |
| Base Product Number | G861AB0 |
| Product Attribute |  |
 |
 |
 |

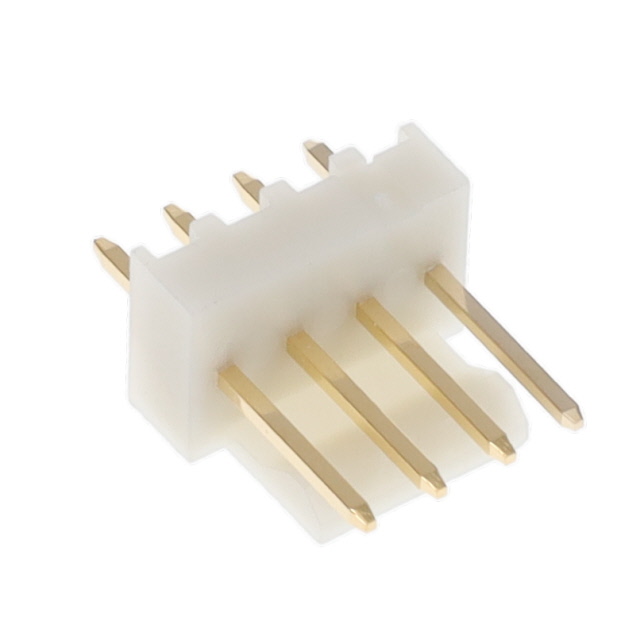

| Part Number | G861AB04221T2EU | G125-MH104M3-02AD000P | G125-MH104M3-04AD000P | G125-MH104M4-02AD000P |
| Manufacturer | Amphenol ICC (Commercial Products) | Harwin Inc. | Harwin Inc. | Harwin Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | WAFER 2.54MM PITCH STR DIP,1X4PI | HDR MALE R/A 2PWR + 4SIGNAL | HDR MALE R/A 4PWR + 4SIGNAL | HDR MALE R/A 2PWR + 4SIGNAL |
| Series | G861 | Gecko MT Reverse Fix | Gecko MT Reverse Fix | Gecko MT |
| Packaging | Bag | Strip | Strip | Strip |
