G8P-1A4P-V DC24
lmages are for reference only.G8P-1A4P-V DC24
RELAY GEN PURPOSE SPST 30A 24V
Datasheet-
54,552 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
G8P-1A4P-V DC24
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | G8P |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 250VAC, 28VDC - Max |
| Load - Max Switching | 7500VA, 840W |
| Coil Current | 36 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -55°C ~ 105°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 660 Ohms |
| Base Product Number | G8P-1A |
| Product Attribute |  |
 |
 |
 |

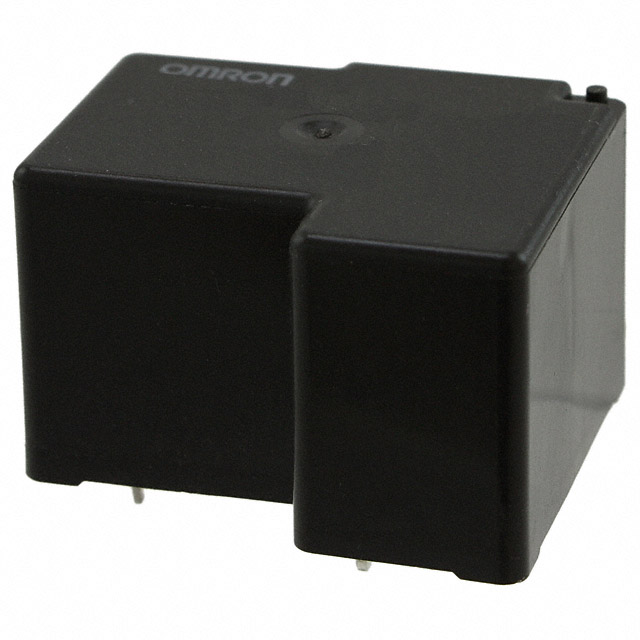

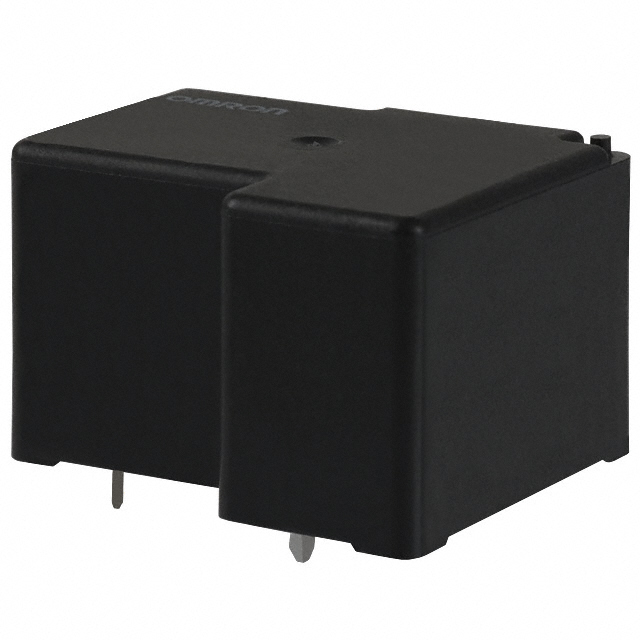

| Part Number | G8P-1A4P-V DC12 | G8P-1A4P-AS DC24 | G8P-1A4P-BG-DC12 | G8P-1A4P-BG-DC24 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | ||||
| Description | RELAY GEN PURPOSE SPST 30A 12V | RELAY GEN PURPOSE SPST 30A 24V | RELAY GEN PURPOSE SPST 20A 12V | RELAY GEN PURPOSE SPST 20A 24V |
| Series | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| Packaging | Bulk | Bulk | Tray | Tray |
