G9912312HR
lmages are for reference only.G9912312HR
EXTREMEPORT SWIFT 74PIN, 30U'',
Datasheet-
82,051 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
74 Position Connector Header, Center Strip Contacts Surface Mount Gold
G9912312HR
| Category | Connectors, Interconnects - Rectangular Connectors - Arrays-Edge Type-Mezzanine Board to Board |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | ExtremePort Swift |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header, Center Strip Contacts |
| Number of Positions | 74 |
| Pitch | 0.024" (0.60mm) |
| Number of Rows | 2 |
| Mounting Type | Surface Mount |
| Features | Board Guide |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Mated Stacking Heights | - |
| Height Above Board | 0.307" (7.80mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

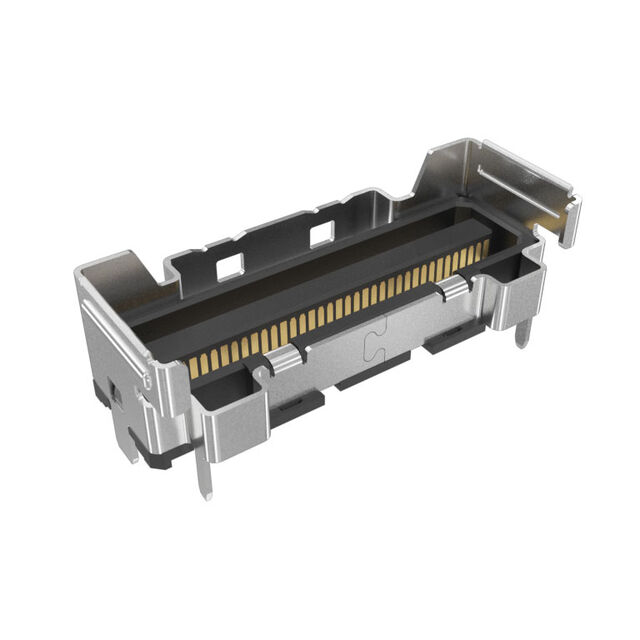

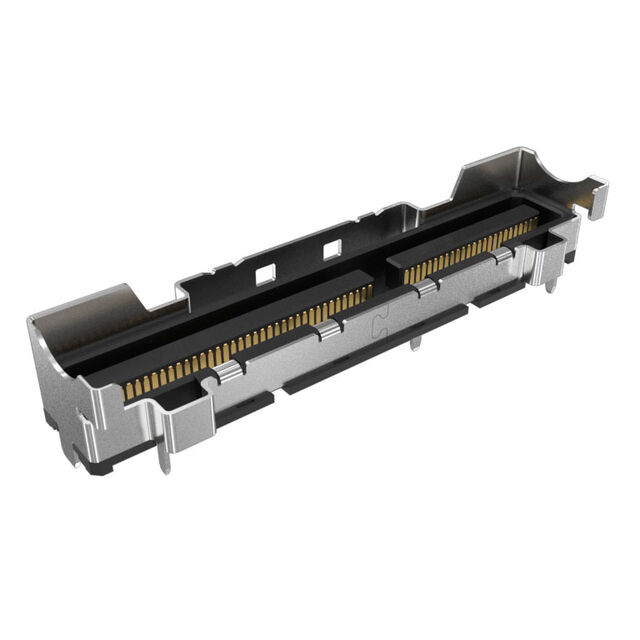

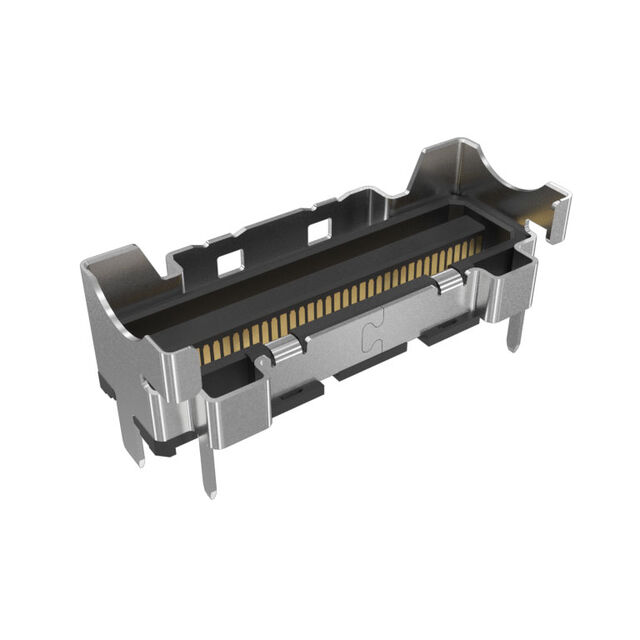

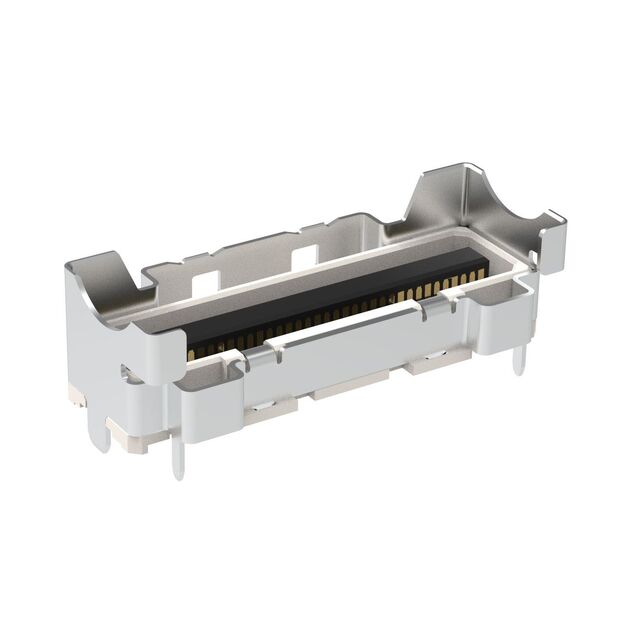

| Part Number | G9912322HR | G9912332HR | G9914312HR | G991B312HR |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | EXTREMEPORT SWIFT 74PIN, 30U'', | EXTREMEPORT SWIFT 74PIN, 30U'', | EXTREMEPORT SWIFT 124PIN, 30U'', | EXTREMEPORT SWIFT 74PIN, 30U'', |
| Series | ExtremePort Swift | ExtremePort Swift | ExtremePort Swift | ExtremePort Swift |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
