GA05JT12-263
lmages are for reference only.GA05JT12-263
TRANS SJT 1200V 15A D2PAK
DatasheetTO-263-8, D2PAK (7 Leads + Tab), TO-263CA
28,799 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1200 V 15A (Tc) 106W (Tc) Surface Mount TO-263-7
GA05JT12-263
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | GeneSiC Semiconductor |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| FET Type | - |
| Technology | SiC (Silicon Carbide Junction Transistor) |
| Drain to Source Voltage (Vdss) | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | - |
| Vgs(th) (Max) @ Id | - |
| Vgs (Max) | - |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| FET Feature | - |
| Power Dissipation (Max) | 106W (Tc) |
| Operating Temperature | 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263-7 |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Base Product Number | GA05JT12 |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

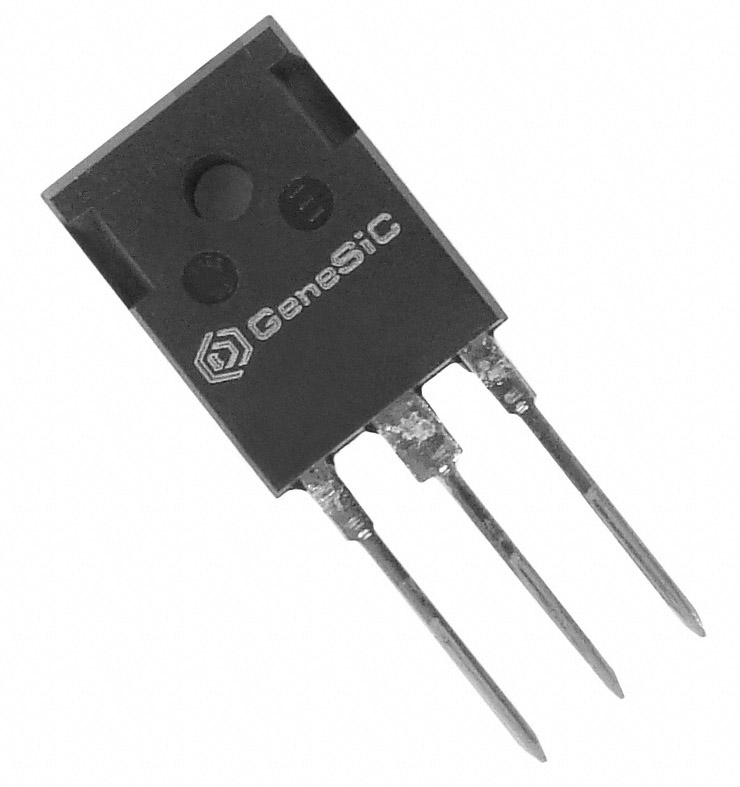

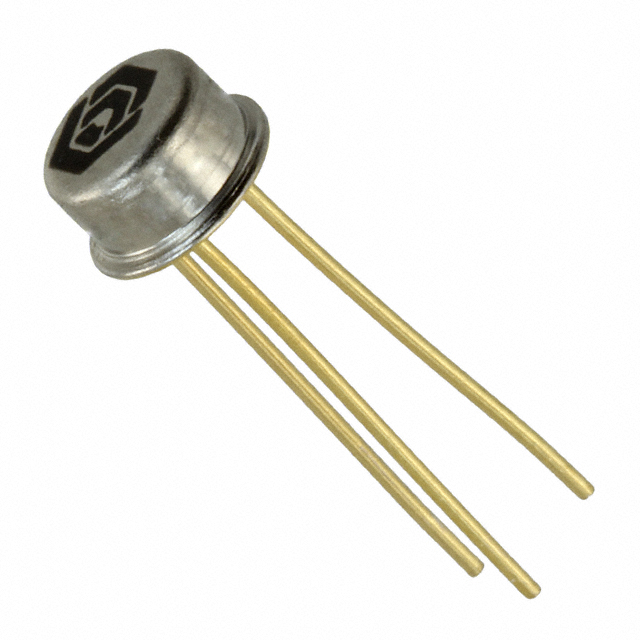

| Part Number | GA05JT01-46 | GA05JT03-46 | GA05JT12-247 | GA03JT12-247 |
| Manufacturer | GeneSiC Semiconductor | GeneSiC Semiconductor | GeneSiC Semiconductor | GeneSiC Semiconductor |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | TRANS SJT 100V 9A TO46 | TRANS SJT 300V 9A TO46 | TRANS SJT 1200V 5A TO247AB | TRANS SJT 1200V 3A TO247AB |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Tube | Tube |
