GBJ1508F
lmages are for reference only.GBJ1508F
GLASS PASSIVATED BRIDGE RECTIFIE
Datasheet4-SIP, GBJ
39,134 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 800 V Through Hole GBJ
GBJ1508F
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | HY Electronic (Cayman) Limited |
| Series | GBJ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 15 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 7.5 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, GBJ |
| Supplier Device Package | GBJ |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

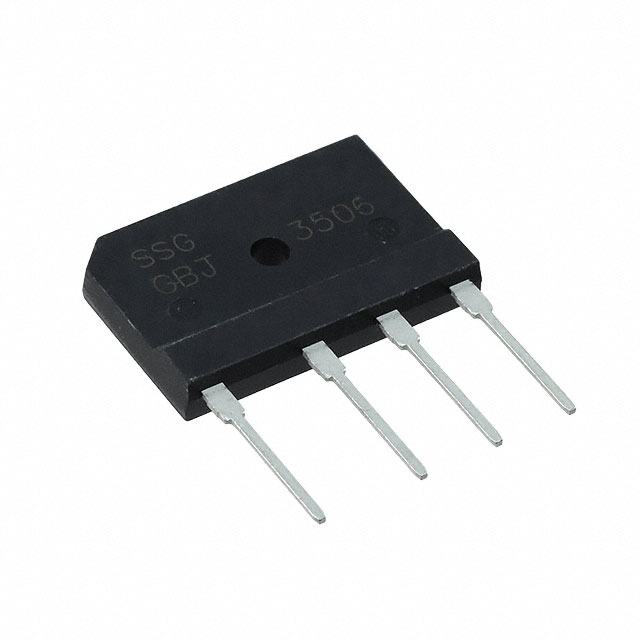

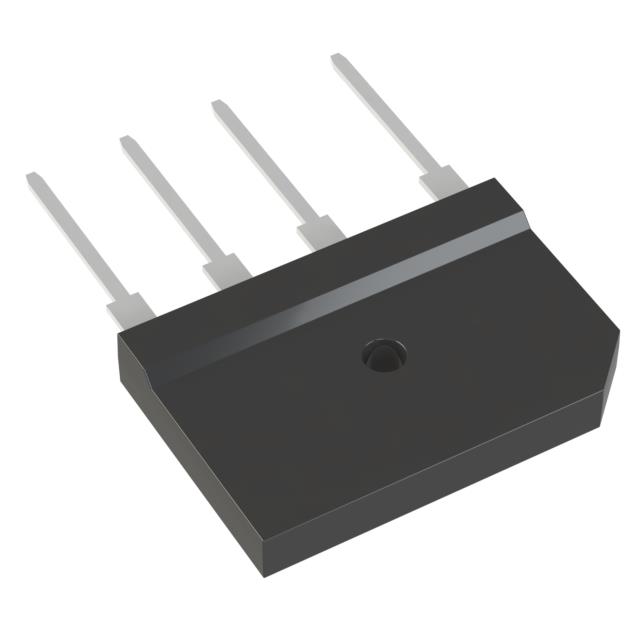

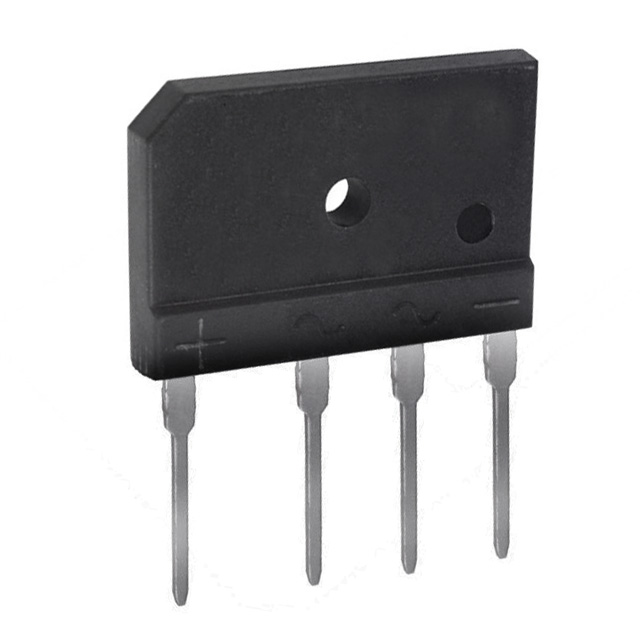

| Part Number | GBJ1508 | GBJ1508-BP | GBJ1508-F | GBJ1508L-BP |
| Manufacturer | SMC Diode Solutions | Micro Commercial Co | Diodes Incorporated | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BRIDGE RECT 1PHASE 800V 15A GBJ | BRIDGE RECT 1PHASE 800V 15A GBJ | BRIDGE RECT 1PHASE 800V 15A GBJ | BRIDGE RECTIFIERS 800V 15A,GBJ |
| Series | - | - | - | GBJ |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
