GBJ2010_T0_00601
lmages are for reference only.GBJ2010_T0_00601
GBJ PACKAGE, 20A/1000V STANDARD
Datasheet4-SIP, GBJ
94,352 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 1 kV Through Hole GBJ-2
GBJ2010_T0_00601
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Panjit International Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | 20 A |
| Voltage - Forward (Vf) (Max) @ If | 1.05 V @ 10 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, GBJ |
| Supplier Device Package | GBJ-2 |
| Base Product Number | GBJ2010 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

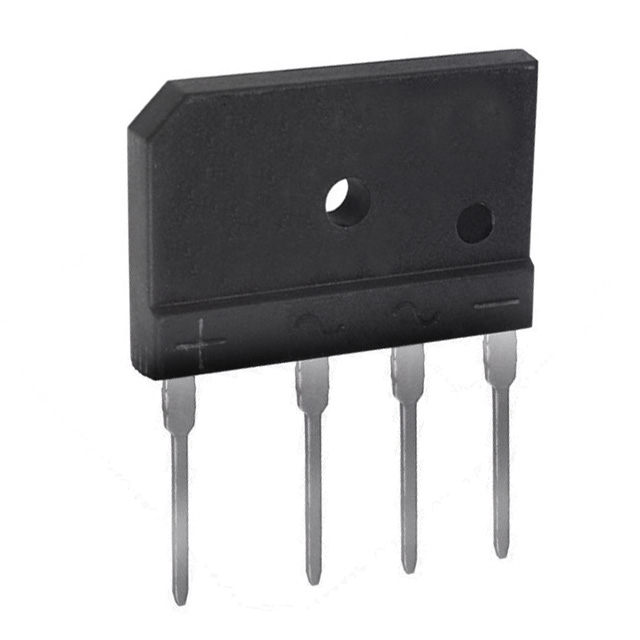

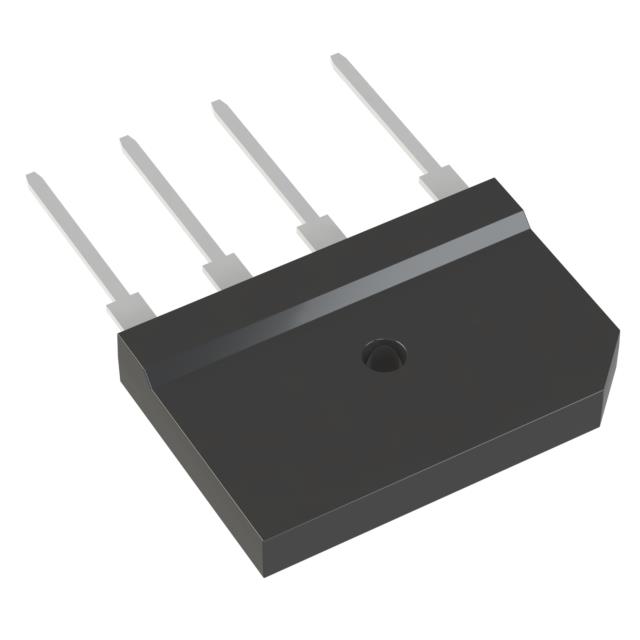

| Part Number | GBJ2010 | GBJ2010 | GBJ2010-BP | GBJ2010-F |
| Manufacturer | SMC Diode Solutions | Diodes Incorporated | Micro Commercial Co | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BRIDGE RECT 1PHASE 1KV 20A GBJ | BRIDGE RECT 1PHASE 1KV 20A GBJ | BRIDGE RECT 1PHASE 1KV 20A GBJ | BRIDGE RECT 1PHASE 1KV 20A GBJ |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Bulk | Tube |
