GBJ2508P
lmages are for reference only.GBJ2508P
GLASS PASSIVATED BRIDGE RECTIFIE
Datasheet4-SIP, GBJ
81,795 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 800 V Through Hole GBJ
GBJ2508P
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | HY Electronic (Cayman) Limited |
| Series | GBJ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 25 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 12.5 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, GBJ |
| Supplier Device Package | GBJ |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

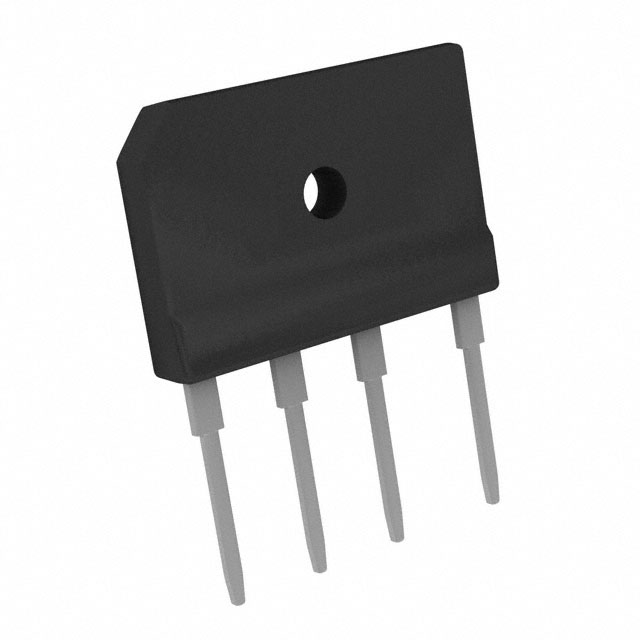

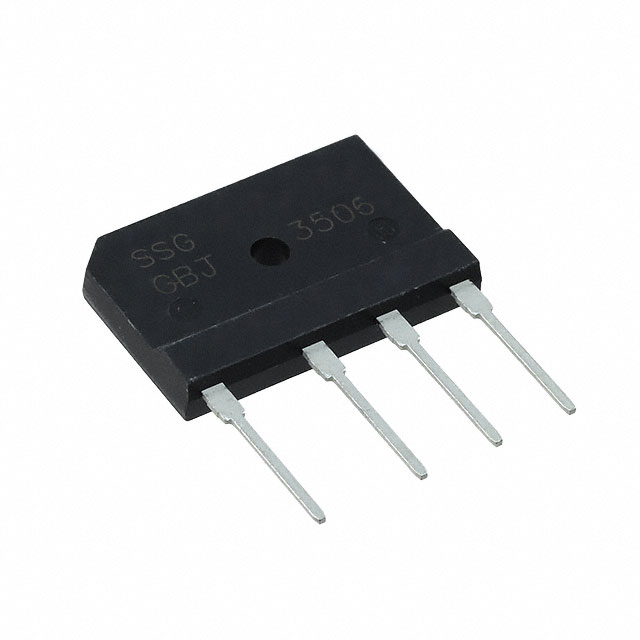

| Part Number | GBJ2508 | GBJ2508-03-G | GBJ2508-04-G | GBJ2508-05-G |
| Manufacturer | SMC Diode Solutions | Comchip Technology | Comchip Technology | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BRIDGE RECT 1PHASE 800V 25A GBJ | BRIDGE RECT 1PHASE 800V 25A GBJ | BRIDGE RECT 1PHASE 800V 25A GBJ | BRIDGE RECT 1PHASE 800V 25A GBJ |
| Series | - | - | - | - |
| Packaging | Tube | Bulk | Bulk | Bulk |
