GBL08
lmages are for reference only.GBL08
BRIDGE RECT 1PHASE 800V 4A GBL
Datasheet4-SIP, GBL
78,013 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 800 V Through Hole GBL
GBL08
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 4 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 2 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, GBL |
| Supplier Device Package | GBL |
| Base Product Number | GBL08 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

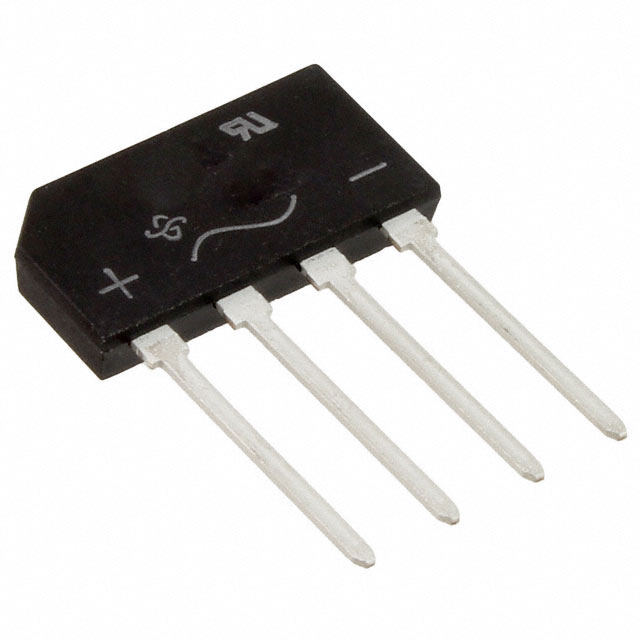

| Part Number | GBL005 | GBL005 | GBL005 D2G | GBL005-E3/45 |
| Manufacturer | Taiwan Semiconductor Corporation | GeneSiC Semiconductor | Taiwan Semiconductor Corporation | Vishay General Semiconductor - Diodes Division |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 4A, 50V, STANDARD BRIDGE RECTIFI | BRIDGE RECT 1PHASE 50V 4A GBL | BRIDGE RECT 1PHASE 50V 4A GBL | BRIDGE RECT 1PHASE 50V 3A GBL |
| Series | - | - | - | - |
| Packaging | Tube | Bulk | Tube | Tube |
