Product CatalogPart Number
GBPC1510
Manufacturer
Diodes IncorporatedDescription
BRIDGE RECT 1PHASE 1KV 15A GBPC
Datasheet
DatasheetPackage
4-Square, GBPC
In Stock
38,754 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
GBPC1510
GBPC1510

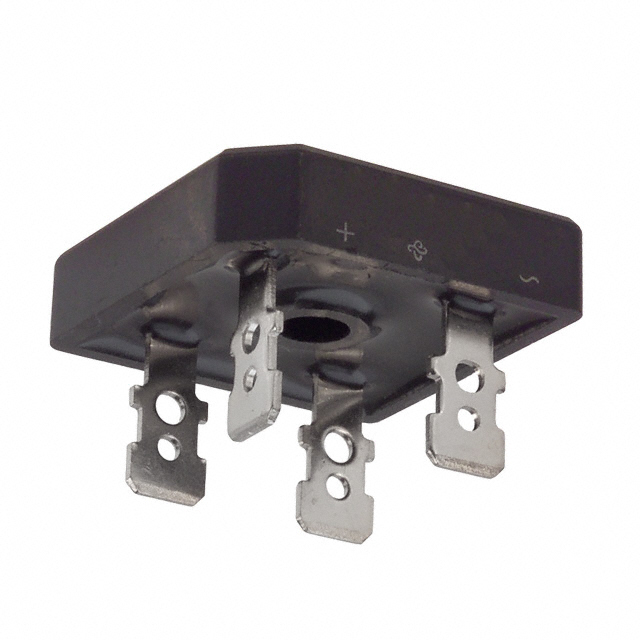

lmages are for reference only.Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 1 kV QC Terminal GBPC
Quick Inquiry
GBPC1510
Specifications
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | 15 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 7.5 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | QC Terminal |
| Package / Case | 4-Square, GBPC |
| Supplier Device Package | GBPC |
| Base Product Number | GBPC1510 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
|
 |
 |
| Part Number | GBPC1510 | GBPC1510 | GBPC1510-BP | GBPC1510-E4/51 |
| Manufacturer | Taiwan Semiconductor Corporation | onsemi | Micro Commercial Co | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 15A, 1000V, STANDARD BRIDGE RECT | BRIDGE RECT 1PHASE 1KV 15A GBPC | Interface | BRIDGE RECT 1PHASE 1KV 15A GBPC |
| Series | GBPC15 | - | - | - |
| Packaging | Tray | Bulk | Bulk | Bulk |
