GBPC5004T
lmages are for reference only.GBPC5004T
BRIDGE RECT 1PHASE 400V 50A GBPC
Datasheet4-Square, GBPC
99,016 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 400 V QC Terminal GBPC
GBPC5004T
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | GeneSiC Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 400 V |
| Current - Average Rectified (Io) | 50 A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 25 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | QC Terminal |
| Package / Case | 4-Square, GBPC |
| Supplier Device Package | GBPC |
| Base Product Number | GBPC5004 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

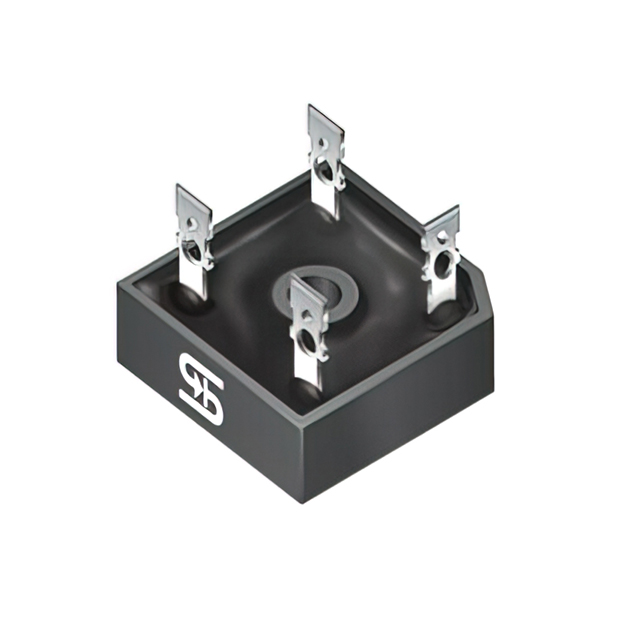

| Part Number | GBPC5004 | GBPC5004-BP | GBPC5004-G | GBPC5004M |
| Manufacturer | Taiwan Semiconductor Corporation | Micro Commercial Co | Comchip Technology | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 50A, 400V, STANDARD BRIDGE RECTI | BRIDGE RECT 1PHASE 400V 50A GBPC | BRIDGE RECT 1PHASE 400V 50A GBPC | 50A, 400V, STANDARD BRIDGE RECTI |
| Series | GBPC50 | - | - | GBPC50 |
| Packaging | Tray | Bulk | Bulk | Tray |
