Product CatalogPart Number
GCMX010A120B2B1P
Manufacturer
SemiQDescription
MOSFET 2N-CH 1200V 214A
Datasheet
DatasheetPackage
Module
In Stock
71,049 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
GCMX010A120B2B1P
GCMX010A120B2B1P

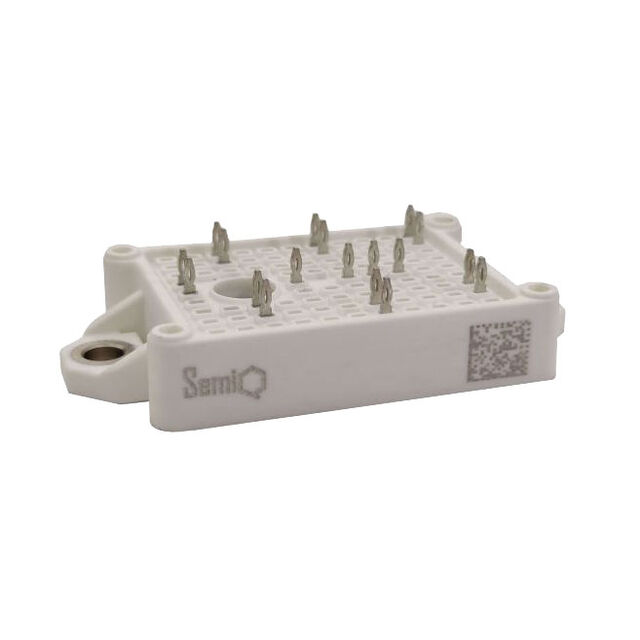

lmages are for reference only.Payment Methods
Delivery Services
Mosfet Array 1200V (1.2kV) 214A (Tc) 750W (Tc) Chassis Mount
Quick Inquiry
GCMX010A120B2B1P
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | SemiQ |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Technology | Silicon Carbide (SiC) |
| Configuration | 2 N-Channel (Half Bridge) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Current - Continuous Drain (Id) @ 25°C | 214A (Tc) |
| Rds On (Max) @ Id, Vgs | 12mOhm @ 100A, 20V |
| Vgs(th) (Max) @ Id | 4V @ 40mA |
| Gate Charge (Qg) (Max) @ Vgs | 476nC @ 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 13100pF @ 800V |
| Power - Max | 750W (Tc) |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

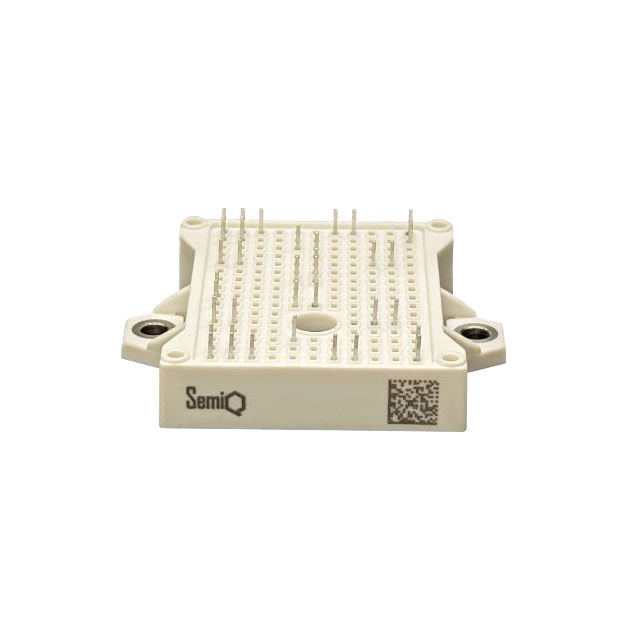

| Part Number | GCMX010A120B3B1P | G1NP02LLE | G4614 | GA100SCPL12-227E |
| Manufacturer | SemiQ | Goford Semiconductor | Goford Semiconductor | GeneSiC Semiconductor |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | |
| Description | MOSFET 2N-CH 1200V 173A | MOSFET 20V 1.3A SOT23-6L | MOSFET N/P-CH 40V 6A 8SOP | SIC 1.2KV 100A |
| Series | - | TrenchFET® | - | - |
| Packaging | Tray | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
