GD25Q16CSIG
lmages are for reference only.GD25Q16CSIG
IC FLASH 16MBIT SPI/QUAD 8SOP
Datasheet8-SOIC (0.209", 5.30mm Width)
87,807 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
FLASH - NOR Memory IC 16Mbit SPI - Quad I/O 120 MHz 8-SOP
GD25Q16CSIG
| Category | Integrated Circuits (ICs) - Memory - Memory |
| Manufacturer | GigaDevice Semiconductor (HK) Limited |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH - NOR |
| Memory Size | 16Mbit |
| Memory Organization | 2M x 8 |
| Memory Interface | SPI - Quad I/O |
| Clock Frequency | 120 MHz |
| Write Cycle Time - Word, Page | 50µs, 2.4ms |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 8-SOP |
| Base Product Number | GD25Q16 |
| Access Time | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

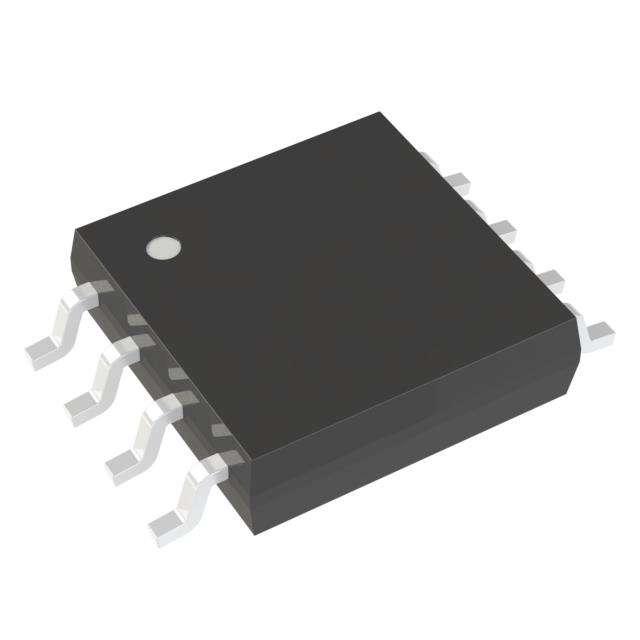

| Part Number | GD25Q16CSIGR | GD25Q16CEIGR | GD25Q16CNIGR | GD25Q16CSJG |
| Manufacturer | GigaDevice Semiconductor (HK) Limited | GigaDevice Semiconductor (HK) Limited | GigaDevice Semiconductor (HK) Limited | GigaDevice Semiconductor (HK) Limited |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

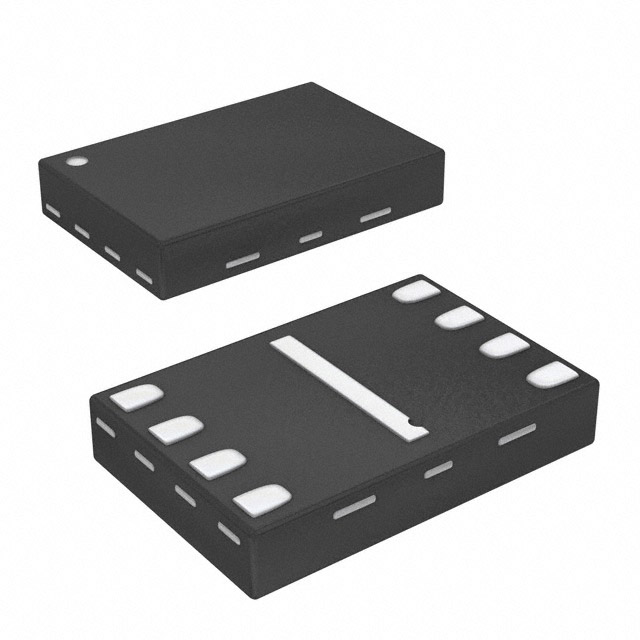

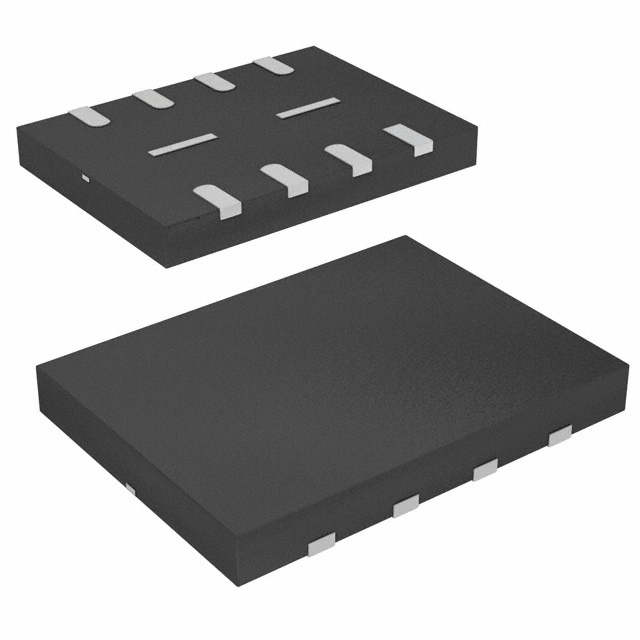

| Description | IC FLASH 16MBIT SPI/QUAD 8SOP | IC FLASH 16MBIT SPI/QUAD 8USON | IC FLASH 16MBIT SPI/QUAD 8USON | IC FLASH 16MBIT SPI/QUAD 8SOP |
| Series | GigaDevice Semiconductor (HK) Limited | GigaDevice Semiconductor (HK) Limited | GigaDevice Semiconductor (HK) Limited | GigaDevice Semiconductor (HK) Limited |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tube |
