GDL1/2
lmages are for reference only.GDL1/2
1-1/4X1/4 FUSE 250V 1/2A GDL
Datasheet3AB, 3AG, 1/4" x 1-1/4"
14,879 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
500 mA 250 V AC DC Fuse Cartridge, Glass Requires Holder 3AB, 3AG, 1/4" x 1-1/4"
GDL1/2
| Category | Circuit Protection - Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | GDL |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge, Glass |
| Current Rating (Amps) | 500 mA |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | - |
| Response Time | Slow Blow |
| Package / Case | 3AB, 3AG, 1/4" x 1-1/4" |
| Breaking Capacity @ Rated Voltage | 35A |
| Melting I²t | 1.75 |
| Approval Agency | CSA, PSE/JET, UL |
| Operating Temperature | -55°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) |
| Base Product Number | - |
| DC Cold Resistance | 2.409 Ohms |
| Product Attribute |  |
 |
 |
 |

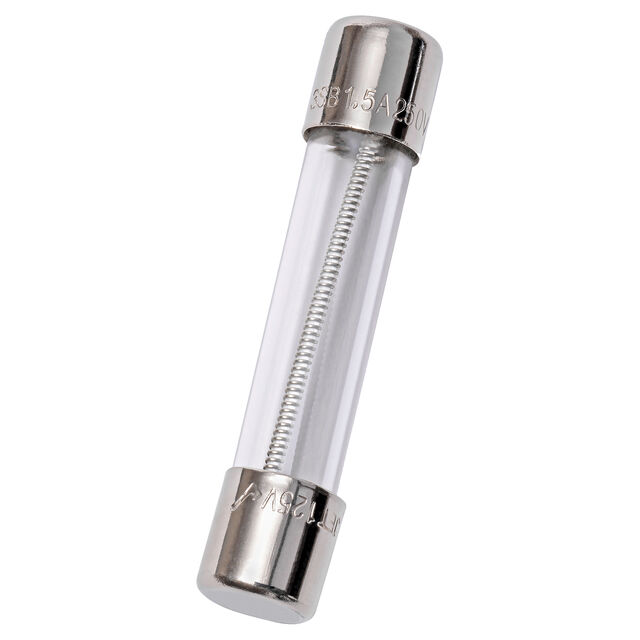

| Part Number | GDL1 | GDL1-1/2 | GDL1-1/4 | GDL10 |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 1-1/4X1/4 FUSE 250V 1A GDL | 1-1/4X1/4 FUSE 250V 1-1/2A GDL | FUSE,TIME DELAY,ELECTRONIC,GLASS | 1-1/4X1/4 FUSE 250V 10A GDL |
| Series | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| Packaging | Box | Box | Box | Box |
