GHSE-19-013-A-02-10-S

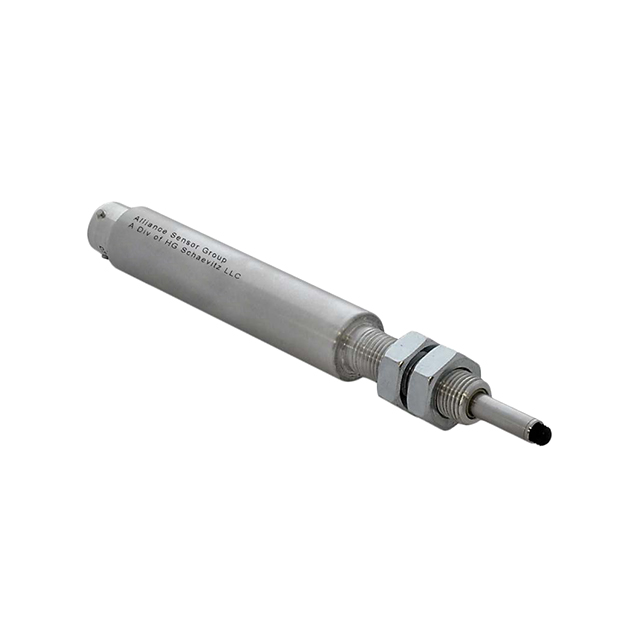

lmages are for reference only.GHSE-19-013-A-02-10-S
SENSOR LINEAR 12.7MM CONNECTOR
DatasheetCylinder
12,759 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LVIT (Linear Variable Inductance Transducer) Sensor Linear Position Round Shaft Connector
GHSE-19-013-A-02-10-S
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Alliance Sensors Group |
| Series | GHS-19 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Linear Position |
| Technology | LVIT (Linear Variable Inductance Transducer) |
| Rotation Angle - Electrical, Mechanical | - |
| Linear Range | 0 ~ 12.70mm (0 ~ 0.50") |
| Output | 0 V ~ 10 V |
| Output Signal | - |
| Actuator Type | Round Shaft |
| Linearity | ±0.15% |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 0V ~ 10V |
| Mounting Type | Chassis Mount |
| Termination Style | Connector |
| Operating Temperature | -20°C ~ 85°C |
| Package / Case | Cylinder |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | GHSE-19-006-A-02-10-S | GHSE-19-025-A-02-10-S | GHSE-19-050-A-02-10-S | GHSE-19-075-A-02-10-S |
| Manufacturer | Alliance Sensors Group | Alliance Sensors Group | Alliance Sensors Group | Alliance Sensors Group |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR LINEAR 6.35MM CONNECTOR | SENSOR LINEAR 25.4MM CONNECTOR | SENSOR LINEAR 50.8MM CONNECTOR | SENSOR LINEAR 76.2MM CONNECTOR |
| Series | GHS-19 | GHS-19 | GHS-19 | GHS-19 |
| Packaging | Box | Tube | Tube | Tube |
