Product CatalogPart Number
GPA030A135MN-FDR
Manufacturer
SemiQDescription
IGBT 1350V 60A 329W TO3PN
Datasheet
DatasheetPackage
TO-3P-3, SC-65-3
In Stock
35,887 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
GPA030A135MN-FDR
GPA030A135MN-FDR
lmages are for reference only.Payment Methods
Delivery Services
IGBT Trench Field Stop 1350 V 60 A 329 W Through Hole TO-3PN
Quick Inquiry
GPA030A135MN-FDR
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | SemiQ |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1350 V |
| Current - Collector (Ic) (Max) | 60 A |
| Current - Collector Pulsed (Icm) | 90 A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 30A |
| Power - Max | 329 W |
| Switching Energy | 4.4mJ (on), 1.18mJ (off) |
| Input Type | Standard |
| Gate Charge | 300 nC |
| Td (on/off) @ 25°C | 30ns/145ns |
| Test Condition | 600V, 30A, 5Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-3, SC-65-3 |
| Supplier Device Package | TO-3PN |
| Reverse Recovery Time (trr) | 450 ns |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

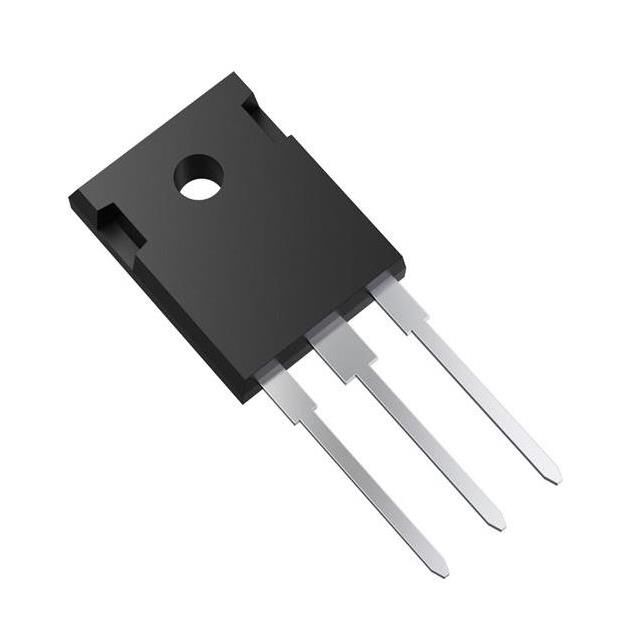

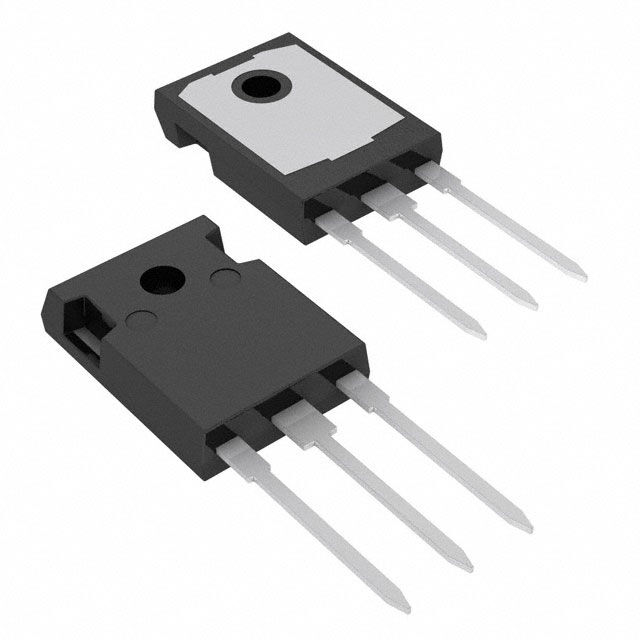

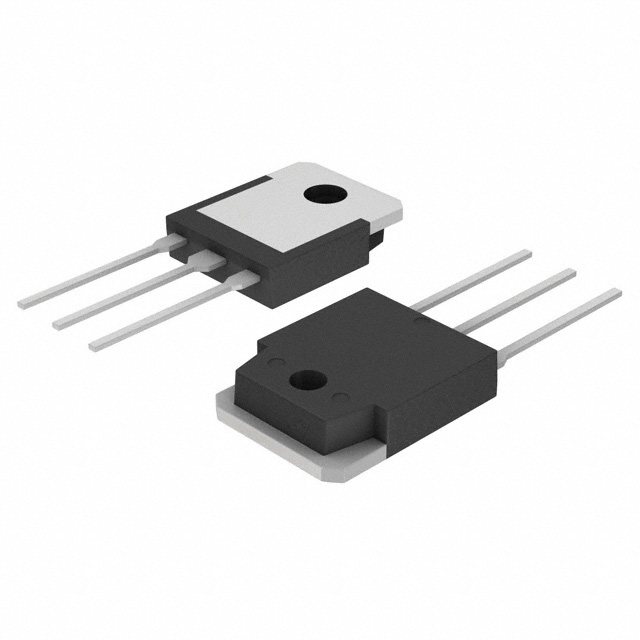

| Part Number | GT40QR21(STA1,E,D | GWA40MS120DF4AG | GT20N135SRA,S1E | GPA060A060MN-FD |
| Manufacturer | Toshiba Semiconductor and Storage | STMicroelectronics | Toshiba Semiconductor and Storage | SemiQ |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IGBT 1200V 40A TO3P | IGBT TRENCH FS 1200V 80A TO247 | IGBT 1350V 40A TO247 | IGBT 600V 120A 347W TO3PN |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
