GSB12621A1EU
lmages are for reference only.GSB12621A1EU
USB2.0 A RECEPT,RIGHT ANGLE, SIN
Datasheet-
22,430 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
GSB12621A1EU
| Category | Connectors, Interconnects - USB-DVI-HDMI Connectors - USB-DVI-HDMI Connector Assemblies |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | GSB1 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | USB-A (USB TYPE-A) |
| Number of Contacts | 4 |
| Gender | Receptacle |
| Specifications | USB 2.0 |
| Mounting Type | Through Hole, Right Angle |
| Mounting Feature | Horizontal |
| Termination | Solder |
| Features | - |
| Ingress Protection | - |
| Operating Temperature | -40°C ~ 85°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 1.5A |
| Voltage - Rated | 30VDC |
| Mating Cycles | 1500 |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Copper Alloy |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

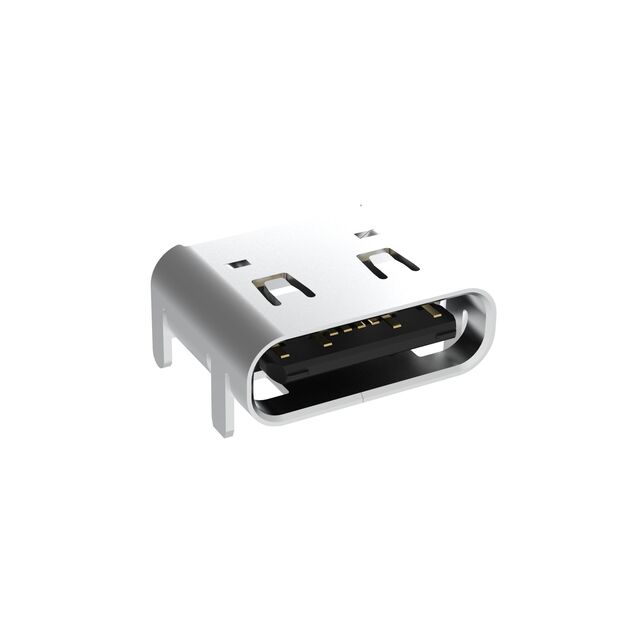

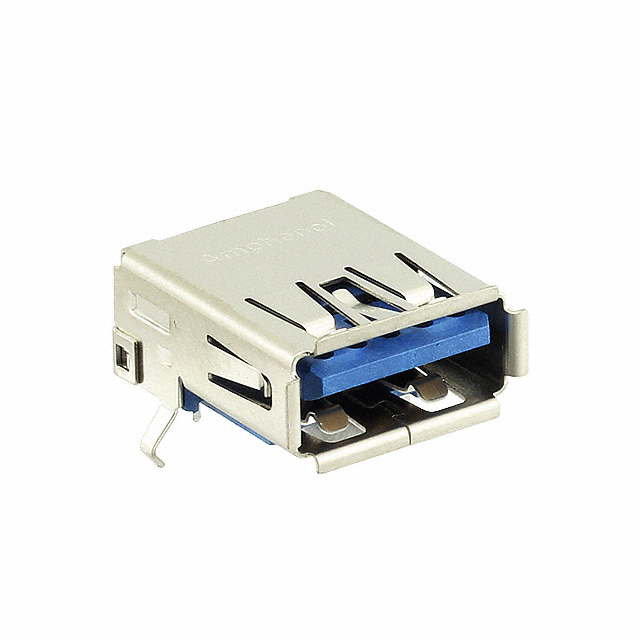

| Part Number | GSB4111312HR | GSB3111311HR | GSB11120KEU | GSB1C4111DYHR |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN RCPT USB3.1 TYPEA 9POS R/A | USB3.0, A, RECEPTACLE, RIGHT ANG | USB2.0 A TYPE,DIP,STRAIGHT | USB2.0, TYPE C, TOP MOUNT, CENTE |
| Series | GSB4 | GSB3 | GSB1 | GSB1 |
| Packaging | Tray | Tray | Tray | Tape & Reel (TR)-->Cut Tape (CT) |
