GSCLAMP0524PE

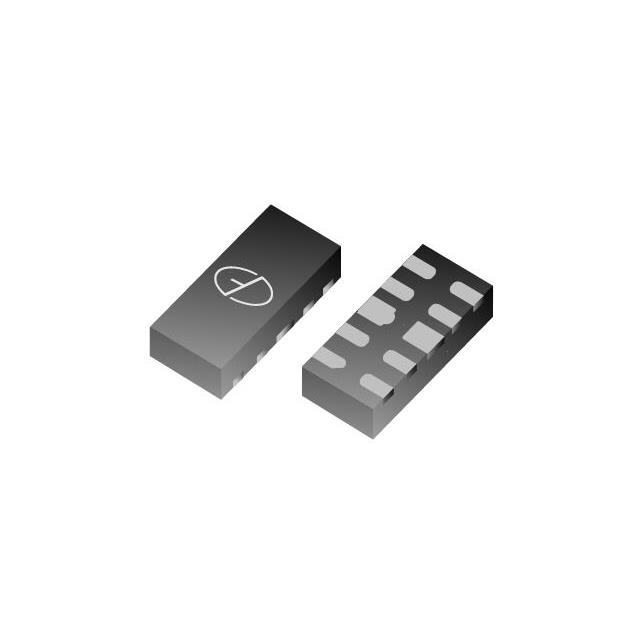

lmages are for reference only.GSCLAMP0524PE
TVS, ESD, ARRAY, UNI-DIR, LOW CA
Datasheet10-UFDFN
64,511 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
26V Clamp 7A (8/20µs) Ipp Tvs Diode Surface Mount DFN2510
GSCLAMP0524PE
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Good-Ark Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Steering (Rail to Rail) |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 26V |
| Current - Peak Pulse (10/1000µs) | 7A (8/20µs) |
| Power - Peak Pulse | 180W |
| Power Line Protection | Yes |
| Applications | DVI, HDMI, USB |
| Capacitance @ Frequency | 0.4pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFDFN |
| Supplier Device Package | DFN2510 |
| Base Product Number | - |
| Unidirectional Channels | 4 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | GSCLAMP3304 | GSCLAMP3324PE | P4SOD6.5CAX | ESD111B1W0201E6327XTSA1 |
| Manufacturer | Good-Ark Semiconductor | Good-Ark Semiconductor | WeEn Semiconductors | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS, ESD, ARRAY, BI-DIR, LOW CAP | TVS, ESD, ARRAY, UNI-DIR. ULTRA | P4SOD6.5CA/SOD123/REEL 7" Q1/T1 | TVS DIODES SG-WLL-2 |
| Series | Good-Ark Semiconductor | Good-Ark Semiconductor | WeEn Semiconductors | Infineon Technologies |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
