GSD5

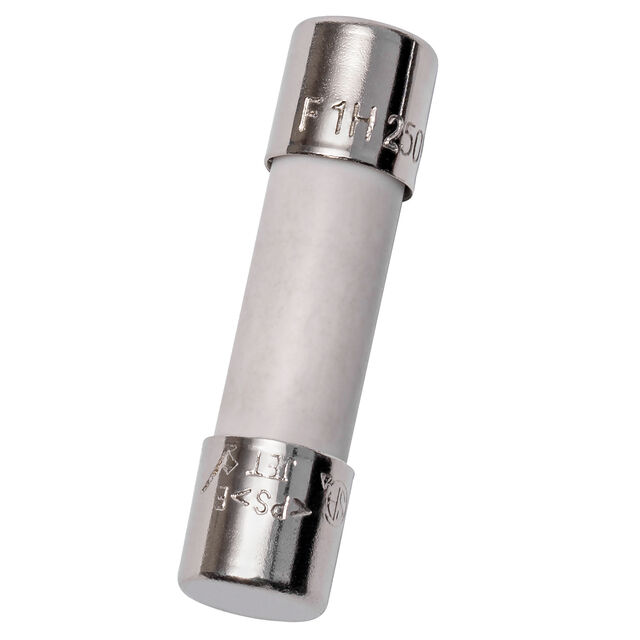

lmages are for reference only.GSD5
FUSE,FAST ACTING,ELECTRONIC,CERA
Datasheet5mm x 20mm
18,536 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5 A 250 V AC DC Fuse Cartridge, Ceramic Requires Holder 5mm x 20mm
GSD5
| Category | Circuit Protection - Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | GSD |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge, Ceramic |
| Current Rating (Amps) | 5 A |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | - |
| Response Time | Fast Blow |
| Package / Case | 5mm x 20mm |
| Breaking Capacity @ Rated Voltage | 1.5kA |
| Melting I²t | - |
| Approval Agency | CSA, UR |
| Operating Temperature | - |
| Color | - |
| Size / Dimension | 0.197" Dia x 0.787" L (5.00mm x 20.00mm) |
| Base Product Number | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | GSD1 | GSD1/2 | GSD2 | GSD3-15/100 |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 5X20MM FA FUSE 250V 1A | 5X20MM FA FUSE 250V 1/2A | FUSE,FAST ACTING,ELECTRONIC,CERA | FUSE,FAST ACTING,ELECTRONIC,CERA |
| Series | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| Packaging | Box | Box | Box | Box |
