GSEC12B006
lmages are for reference only.GSEC12B006
TVS, ESD, SINGLE, BI-DIR, LOW CA
DatasheetSC-76, SOD-323
36,889 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
20V Clamp 12A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
GSEC12B006
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Good-Ark Semiconductor |
| Series | GSECxB006 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 12V |
| Voltage - Breakdown (Min) | 13.5V |
| Voltage - Clamping (Max) @ Ipp | 20V |
| Current - Peak Pulse (10/1000µs) | 12A (8/20µs) |
| Power - Peak Pulse | 550W |
| Power Line Protection | No |
| Applications | Ethernet, USB |
| Capacitance @ Frequency | 0.6pF @ 1MHz |
| Operating Temperature | -45°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

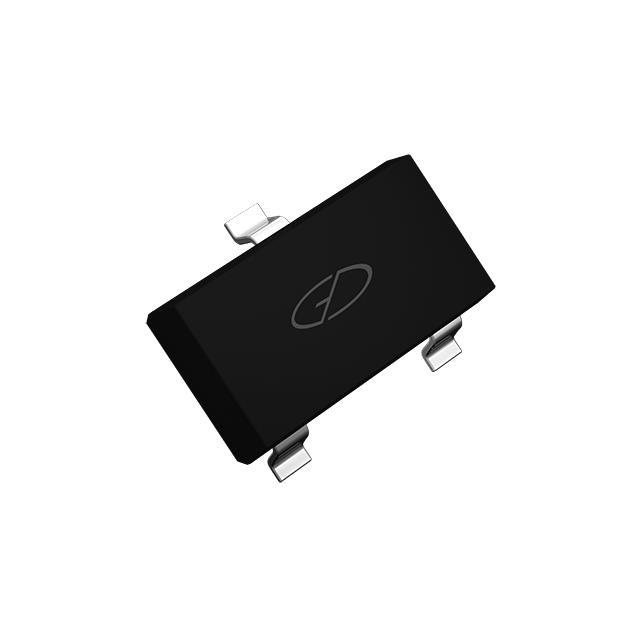

| Part Number | GSEC15B006 | GSEC3U2000 | GSEC7B750 | GSECA5B003 |
| Manufacturer | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS, ESD, SINGLE, BI-DIR, LOW CA | TVS, ESD, DUAL, UNI-DIR 3.3V, SO | TVS, ESD, DUAL, BI-DIR, 12.0/7.0 | TVS, SNAPBACK ESD, SINGLE, BI-DI |
| Series | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
