GSEN12B035
lmages are for reference only.GSEN12B035
TVS, ESD, SINGLE, BI-DIR, 12V, D
Datasheet0201 (0603 Metric)
74,636 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
26V Clamp 5.5A (8/20µs) Ipp Tvs Diode Surface Mount DFN0603
GSEN12B035
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Good-Ark Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 12V (Max) |
| Voltage - Breakdown (Min) | 13.4V |
| Voltage - Clamping (Max) @ Ipp | 26V |
| Current - Peak Pulse (10/1000µs) | 5.5A (8/20µs) |
| Power - Peak Pulse | 150W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 3.5pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | DFN0603 |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | GSEN3U003 | GSEN3U303 | GSEN5B002 | GSEN5B025 |
| Manufacturer | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

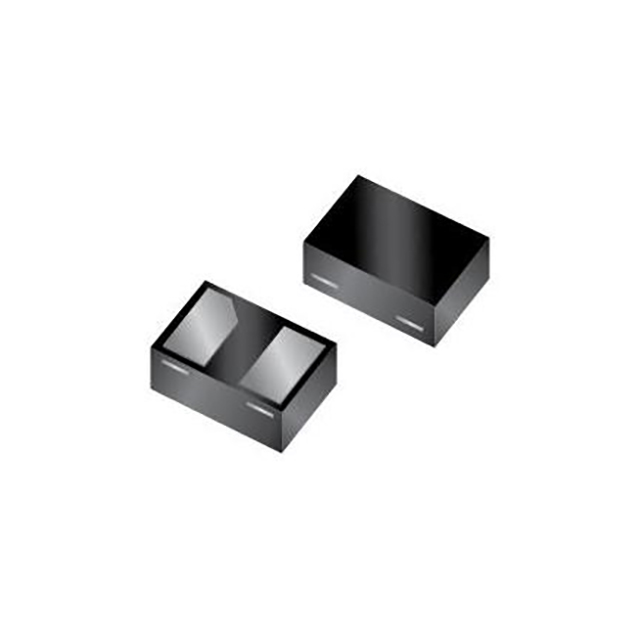

| Description | TVS, ESD, SINGLE, UNI-DIR, LOW C | TVS, ESD, SINGLE, UNI-DIR, LOW C | TVS, ESD, SINGLE, BI-DIR, LOW CA | TVS, ESD, SINGLE, BI-DIR, 5.0V, |
| Series | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
