Product CatalogPart Number
GSFP6016
Manufacturer
Good-Ark SemiconductorDescription
MOSFET, N-CH, SINGLE, 50.00A, 60
Datasheet
DatasheetPackage
8-PowerTDFN
In Stock
97,903 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
GSFP6016
GSFP6016
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 60 V 50A (Tc) 60W (Tc) Surface Mount 8-PPAK (4.9x5.8)
Quick Inquiry
GSFP6016
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Good-Ark Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 50A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 16mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.9V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2200 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 60W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-PPAK (4.9x5.8) |
| Package / Case | 8-PowerTDFN |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 48 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |

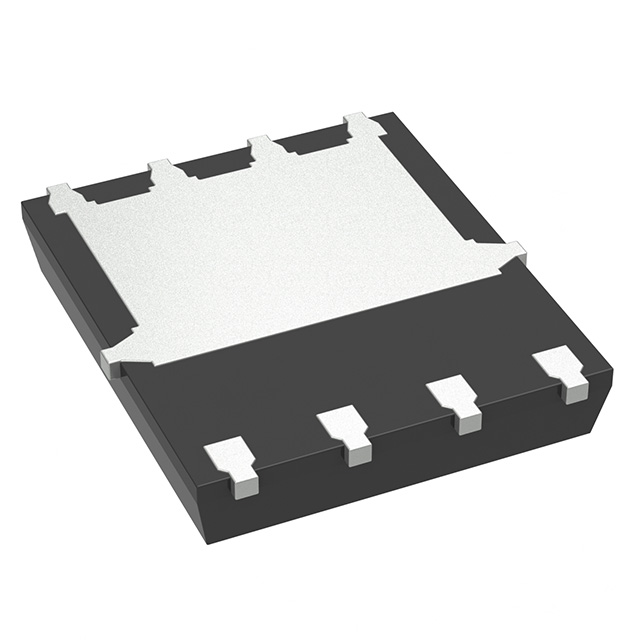

| Part Number | GSFP68015 | GSFP6901 | GS-065-004-1-L-MR | GS-065-004-1-L-TR |
| Manufacturer | Good-Ark Semiconductor | Good-Ark Semiconductor | Infineon Technologies Canada Inc. | Infineon Technologies Canada Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET, N-CH, SINGLE, 20.00A, 15 | MOSFET, P-CH, SINGLE, -72A, -60V | GS-065-004-1-L-MR | GS-065-004-1-L-TR |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
