GT065P06M
lmages are for reference only.GT065P06M
MOSFET P-CH 60V 103A 178W 9M(MAX
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
50,596 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
P-Channel 60 V 103A (Tc) 178W (Tc) Surface Mount TO-263
GT065P06M
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Goford Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 103A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5985 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 178W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263 |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 62 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

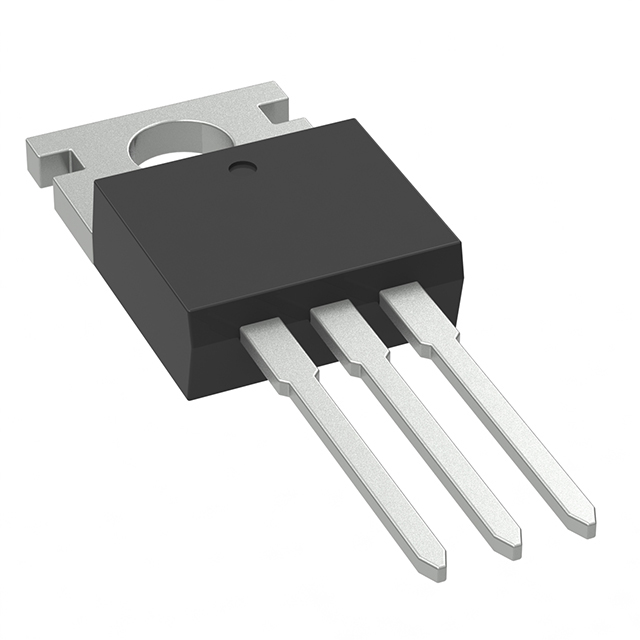

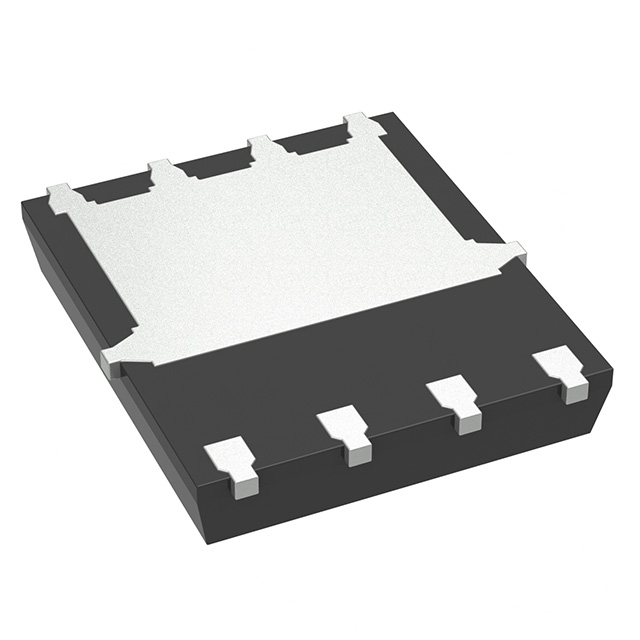

| Part Number | GT065P06D5 | GT065P06T | GT007N04TL | GT009N04D5 |
| Manufacturer | Goford Semiconductor | Goford Semiconductor | Goford Semiconductor | Goford Semiconductor |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | MOSFET P-CH 60V 103A DFN5*6-8L | P-60V,-82A,RD(MAX)<7.5M@-10V,VTH | N40V,150A,RD<1.5M@10V,VTH1.0V~2. | N40V,100A,RD<1.3M@10V,VTH1.0V~2. |
| Series | SGT | SGT | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR) | Tape & Reel (TR) |
