H11L1SM
lmages are for reference only.H11L1SM
OPTOISO 5KV OPEN COLLECTOR 6SMD
Datasheet6-SMD, Gull Wing
60,059 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Logic Output Optoisolator 1MHz Open Collector 5000Vrms 1 Channel CMTI 6-SMD
H11L1SM
| Category | Isolators - Optoisolators - Logic Output Optoisolators |
| Manufacturer | Isocom Components 2004 LTD |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | - |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 50 mA |
| Data Rate | 1MHz |
| Propagation Delay tpLH / tpHL (Max) | 6µs, 3µs |
| Rise / Fall Time (Typ) | 100ns, 50ns |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | 50mA |
| Voltage - Supply | 3V ~ 15V |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Gull Wing |
| Supplier Device Package | 6-SMD |
| Base Product Number | H11L1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|

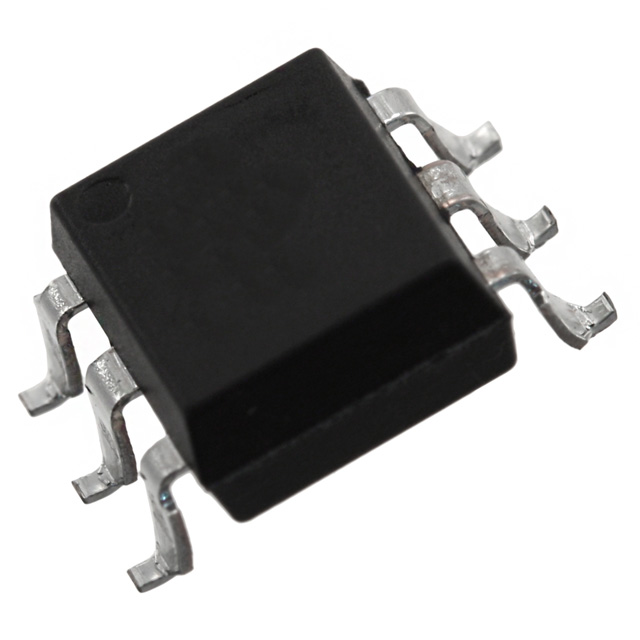

.jpg "H11L1S(TA)") |
|
| Part Number | H11L1S | H11L1S | H11L1S(TA) | H11L1S(TA) |
| Manufacturer | onsemi | onsemi | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOCOUPLER SCHMITT TRIG OUT SMT | OPTOCOUPLER SCHMITT TRIG OUT SMT | OPTOISO 5KV OPEN COLLECTOR 6SMD | OPTOISO 5KV OPEN COLLECTOR 6SMD |
| Series | - | - | - | - |
| Packaging | Bag | Bag | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
