H11L3SMT&R

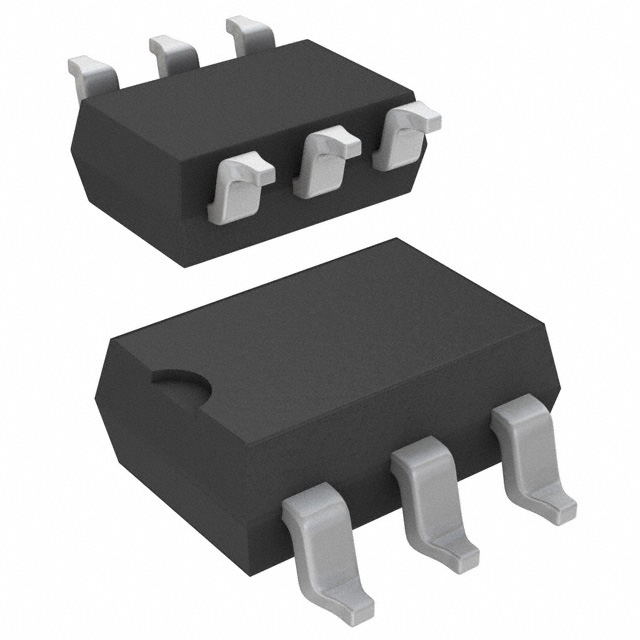

lmages are for reference only.H11L3SMT&R
6PIN SCHMITT TRIGGER, SINGLE OPT
Datasheet6-SMD (0.300", 7.62mm)
73,450 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Logic Output Optoisolator 1MHz Open Collector 5300Vrms 1 Channel CMTI 6-SMD
H11L3SMT&R
| Category | Isolators - Optoisolators - Logic Output Optoisolators |
| Manufacturer | Isocom Components 2004 LTD |
| Series | H11L3 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5300Vrms |
| Common Mode Transient Immunity (Min) | - |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 50 mA |
| Data Rate | 1MHz |
| Propagation Delay tpLH / tpHL (Max) | 6µs, 3µs |
| Rise / Fall Time (Typ) | 100ns, 100ns |
| Voltage - Forward (Vf) (Typ) | 1.5V (Max) |
| Current - DC Forward (If) (Max) | 50mA |
| Voltage - Supply | 3V ~ 15V |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD (0.300", 7.62mm) |
| Supplier Device Package | 6-SMD |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
|
| Part Number | H11L3SMT&R | H11L3SM | H11L3SM | H11L3SM |
| Manufacturer | Isocom Components 2004 LTD | onsemi | Isocom Components 2004 LTD | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 6PIN SCHMITT TRIGGER, SINGLE OPT | OPTOISO 4.17KV OPN COLL 6SMD | 6PIN SCHMITT TRIGGER, SINGLE OPT | OPTOISO 4.17KV OPN COLL 6SMD |
| Series | H11L3 | - | H11L3 | - |
| Packaging | Tape & Reel (TR) | Tube | Tube | Tube |
