HAL835UT-A

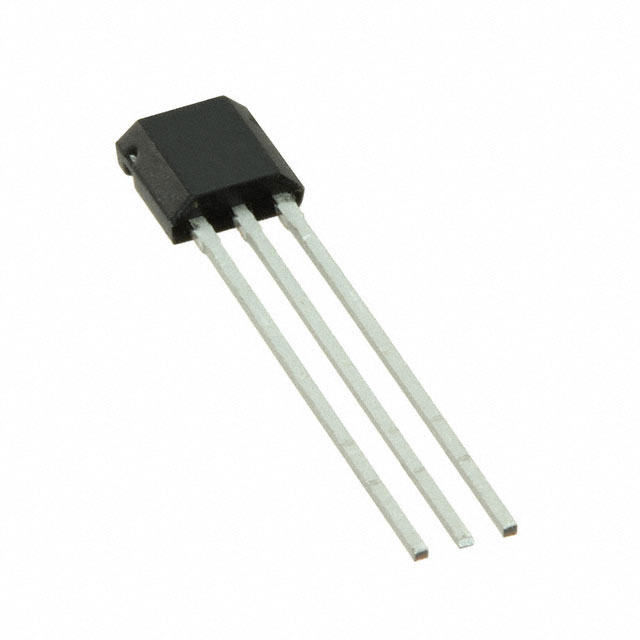

lmages are for reference only.HAL835UT-A
SENSOR ANGLE 89DEG PC PIN
DatasheetTO-226-3, TO-92-3 (TO-226AA) Formed Leads
42,710 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Angle, Linear, Rotary External Magnet, Not Included PC Pin
HAL835UT-A
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | TDK-Micronas GmbH |
| Series | - |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | RoHS Compliant |
| For Measuring | Angle, Linear, Rotary |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 0° ~ 89° |
| Linear Range | - |
| Output | Analog Voltage, PWM |
| Output Signal | - |
| Actuator Type | External Magnet, Not Included |
| Linearity | - |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 170°C |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
| Supplier Device Package | TO-92UT-1 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Base Product Number | HAL835 |
| Product Attribute |  |
 |
|
 |
| Part Number | HAL830PUT-A | HAL830UT-A | HAL835PUT-A | MLX90513GGO-CAA-100-SP |
| Manufacturer | TDK-Micronas GmbH | TDK-Micronas GmbH | TDK-Micronas GmbH | Melexis Technologies NV |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | PROGRAMMABLE LINEAR HALL SENSOR | SENSOR ANGLE 89DEG PC PIN | HIGH-PRECISION PROGRAMMABLE LINE | INDUCTIVE POSITION SENSOR ASSP W |
| Series | - | - | - | - |
| Packaging | Bulk | Cut Tape (CT)-->Tape & Box (TB) | Bulk | Bulk |
