HAU220KBACD0KR

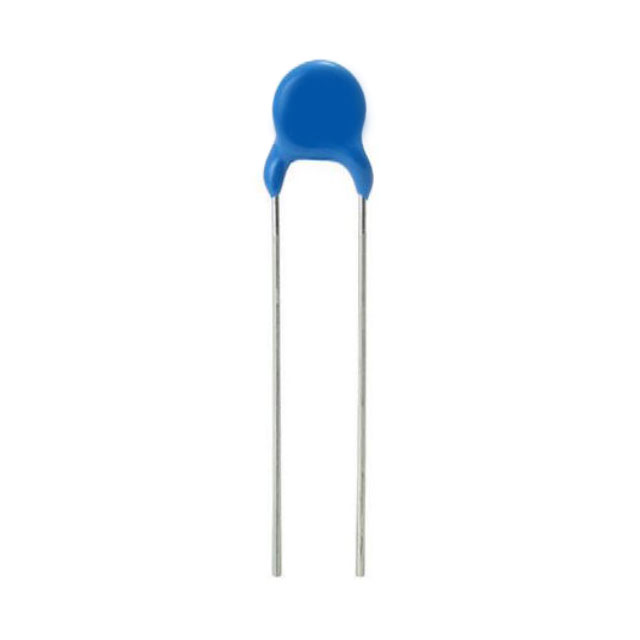

lmages are for reference only.HAU220KBACD0KR
CAP CER 22PF 1KV N750 RADIAL
DatasheetRadial, Disc
24,013 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22 pF ±10% 1000V (1kV) Ceramic Capacitor N750 Radial, Disc
HAU220KBACD0KR
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | HAU |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 22 pF |
| Tolerance | ±10% |
| Voltage - Rated | 1000V (1kV) |
| Temperature Coefficient | N750 |
| Operating Temperature | -40°C ~ 85°C |
| Features | High Voltage |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.276" Dia (7.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.295" (7.50mm) |
| Lead Style | Straight |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|
| Part Number | HAU220KBACF0KR | HAU221KBACF0KR | HAU270KBACF0KR | HAU270KBACF0KR |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 22PF 1KV N750 RADIAL | CAP CER 220PF 1KV N750 RADIAL | CAP CER 27PF 1KV N750 RADIAL | CAP CER 27PF 1KV N750 RADIAL |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
