Product CatalogPart Number
HB01U05S05ZC
Manufacturer
Murata Power Solutions Inc.Description
DC DC CONVERTER 5V 1W
Datasheet
DatasheetPackage
24-SMD Module
In Stock
59,980 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HB01U05S05ZC
HB01U05S05ZC
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Quick Inquiry
HB01U05S05ZC
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | HB01UZC (1W) |
| Packaging | Tube |
| RoHS Status | |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 200mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 68% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-SMD Module |
| Size / Dimension | 1.29" L x 0.53" W x 0.38" H (32.8mm x 13.5mm x 9.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | HB01U05 |
| Voltage - Isolation | 2.5 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

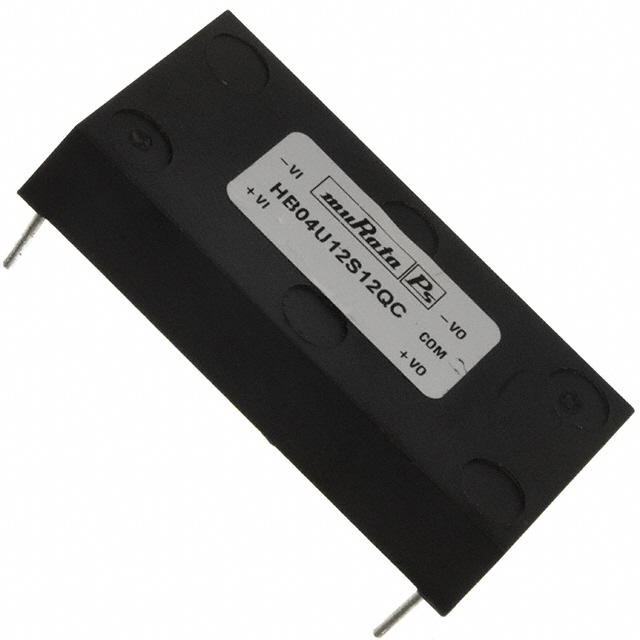

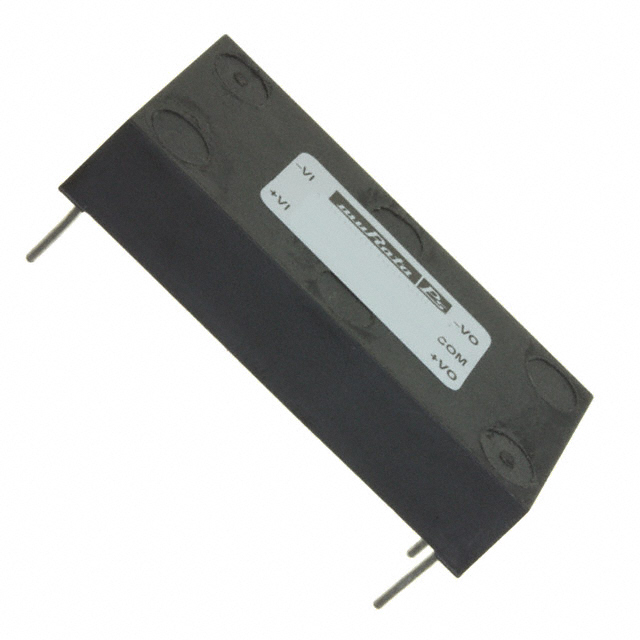

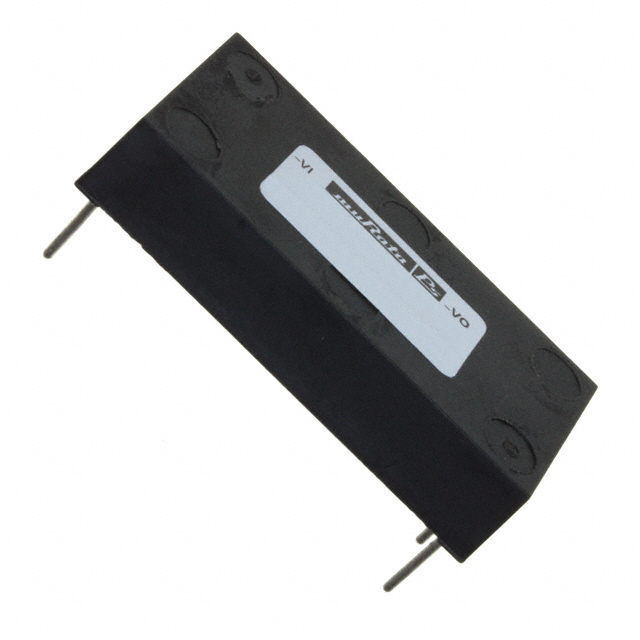

| Part Number | HB01U05S05YC | HB04U12D15QC | HB04U12S05QC | HB04U12S12QC |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | |||
| Description | DC DC CONVERTER 5V 1W | DC DC CONVERTER +/-15V 4W | DC DC CONVERTER 5V 4W | DC DC CONVERTER 12V 4W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tube | Tube | Tube | Tube |
