Product CatalogPart Number
HBWS1608-8N7J
Manufacturer
Max EchoDescription
FIXED IND 8.7NH 700MA 109MOHM SM
Datasheet
DatasheetPackage
0603 (1608 Metric)
In Stock
75,415 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HBWS1608-8N7J
HBWS1608-8N7J
lmages are for reference only.Payment Methods
Delivery Services
8.7 nH Unshielded Wirewound Inductor 700 mA 109mOhm Max 0603 (1608 Metric)
Quick Inquiry
HBWS1608-8N7J
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Max Echo |
| Series | HBWS |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 8.7 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 700 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 109mOhm Max |
| Q @ Freq | 28 @ 250MHz |
| Frequency - Self Resonant | 4.6GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.041" W (1.60mm x 1.05mm) |
| Height - Seated (Max) | 0.041" (1.05mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | HBWS1608-82NJ | HBWS1608-8N2J | HBWS1608-10NJ | HBWS1608-11NJ |
| Manufacturer | Max Echo | Max Echo | Max Echo | Max Echo |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 82NH 400MA 540MOHM SMD | FIXED IND 8.2NH 700MA 100MOHM SM | FIXED IND 10NH 700MA 130MOHM SMD | FIXED IND 11NH 700MA 90MOHM SMD |
| Series | Max Echo | Max Echo | Max Echo | Max Echo |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
HBWS1005-13NJ
Max Echo
HBWS1005-15NJ
Max Echo
HBWS1005-16NJ
Max Echo

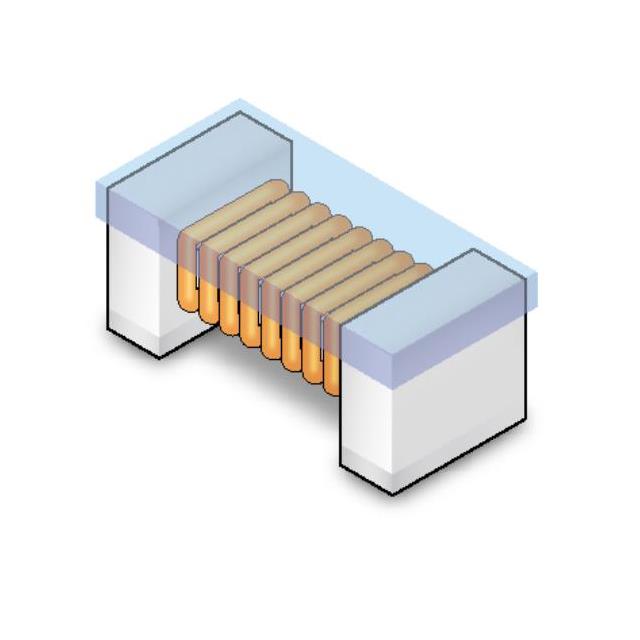

HBWS1005-1N0S
