HCF1305-3R3-R
lmages are for reference only.HCF1305-3R3-R
FIXED IND 3.3UH 13.2A 4.9MOHM SM
DatasheetNonstandard
48,524 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.3 µH Unshielded Drum Core, Wirewound Inductor 13.2 A 4.9mOhm Max Nonstandard
HCF1305-3R3-R
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Eaton - Electronics Division |
| Series | HCF1305 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 13.2 A |
| Current - Saturation (Isat) | 12.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 4.9mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |

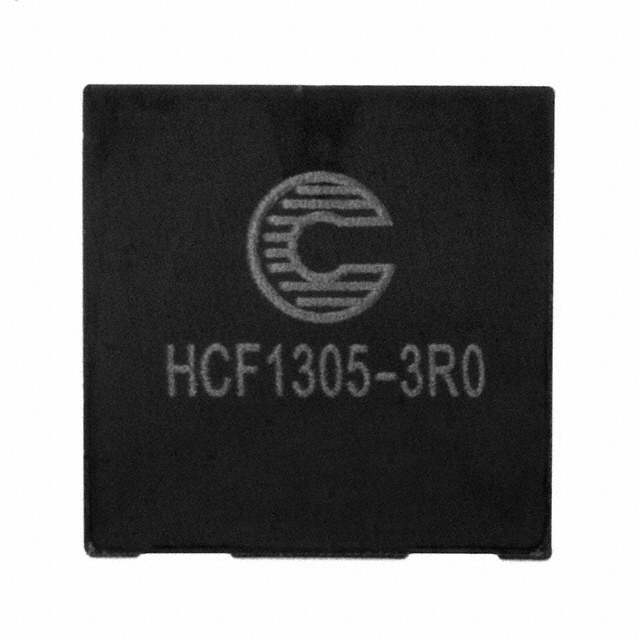

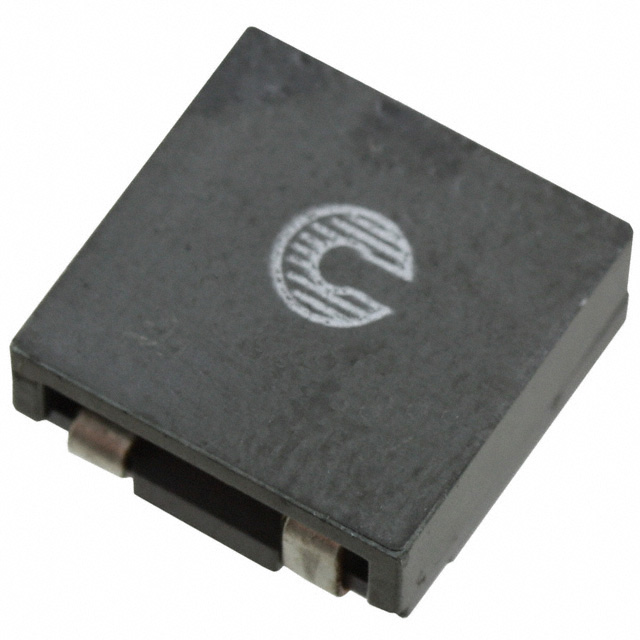

| Part Number | HCF1305-3R0-R | HCF1305-3R0-R | HCF1305-3R0-R | HCF1305-1R0-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | FIXED IND 3UH 13.2A 4.9 MOHM SMD | FIXED IND 3UH 13.2A 4.9 MOHM SMD | FIXED IND 3UH 13.2A 4.9 MOHM SMD | FIXED IND 1UH 22A 1.9 MOHM SMD |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
