HCPL-070A-060E

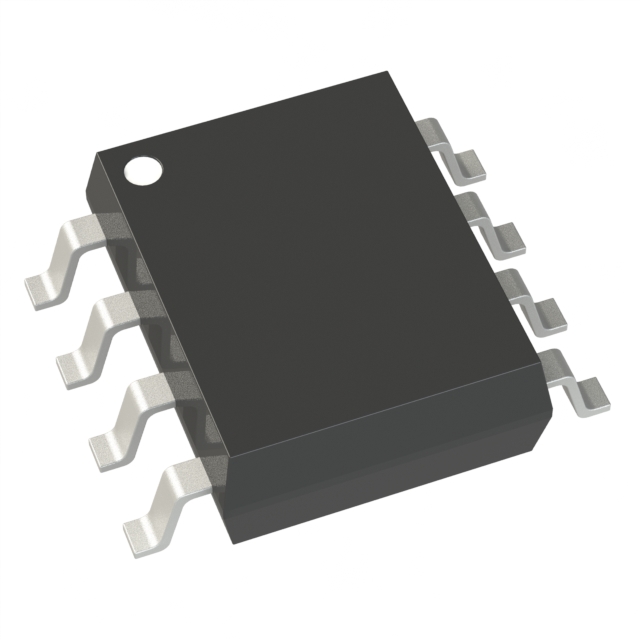

lmages are for reference only.HCPL-070A-060E
OPTOISO 3.75KV DARL W/BASE 8SOIC
Datasheet8-SOIC (0.154", 3.90mm Width)
50,691 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Darlington with Base Output 3750Vrms 1 Channel 8-SO
HCPL-070A-060E
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Broadcom Limited |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 600% @ 500µA |
| Current Transfer Ratio (Max) | 8000% @ 500µA |
| Turn On / Turn Off Time (Typ) | 3µs, 34µs |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Darlington with Base |
| Voltage - Output (Max) | 18V |
| Current - Output / Channel | 60mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 5 mA |
| Vce Saturation (Max) | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Base Product Number | HCPL-070 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HCPL-070A-000E | HCPL-0700 | HCPL-0700#060 | HCPL-0700#500 |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | OPTOISO 3.75KV DARL W/BASE 8SOIC | OPTOISO 3.75KV DARL W/BASE 8SOIC | OPTOISO 3.75KV DARL W/BASE 8SOIC | OPTOISO 3.75KV DARL W/BASE 8SOIC |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR) |
