HCPL-0930-500
lmages are for reference only.HCPL-0930-500
DGTL ISO 2500VRMS 2CH GP 8SOIC
Datasheet8-SOIC (0.154", 3.90mm Width)
50,221 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Digital Isolator 2500Vrms 2 Channel 110MBd 15kV/µs CMTI 8-SOIC (0.154", 3.90mm Width)
HCPL-0930-500
| Category | Isolators - Digital Isolators - |
| Manufacturer | Broadcom Limited |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Technology | GMR (Giant Magnetoresistive) |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 2/0 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Data Rate | 110MBd |
| Propagation Delay tpLH / tpHL (Max) | 15ns, 15ns |
| Pulse Width Distortion (Max) | 3ns |
| Rise / Fall Time (Typ) | 1ns, 1ns |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | HCPL-0930 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

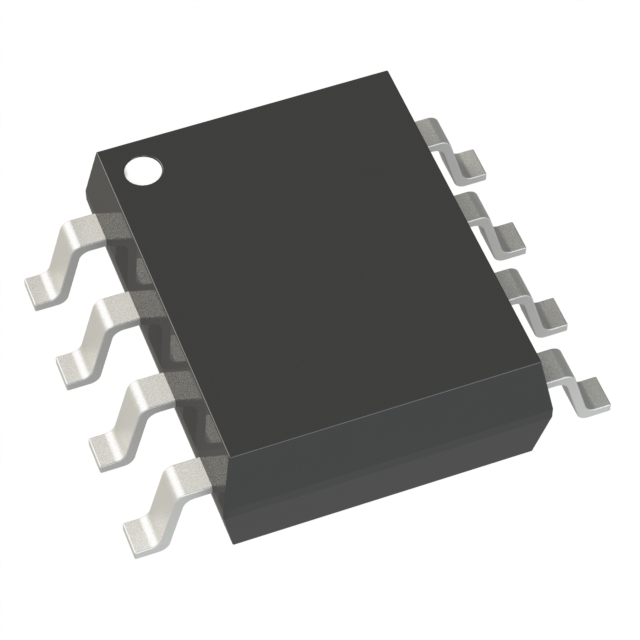

| Part Number | HCPL-0930-000E | HCPL-0930-500E | HCPL-0900 | HCPL-0900-000E |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | DGTL ISO 2500VRMS 2CH GP 8SOIC | DGTL ISO 2500VRMS 2CH GP 8SOIC | DGTL ISO 2500VRMS 1CH GP 8SOIC | DGTL ISO 2500VRMS 1CH GP 8SOIC |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
