HCPL2530M

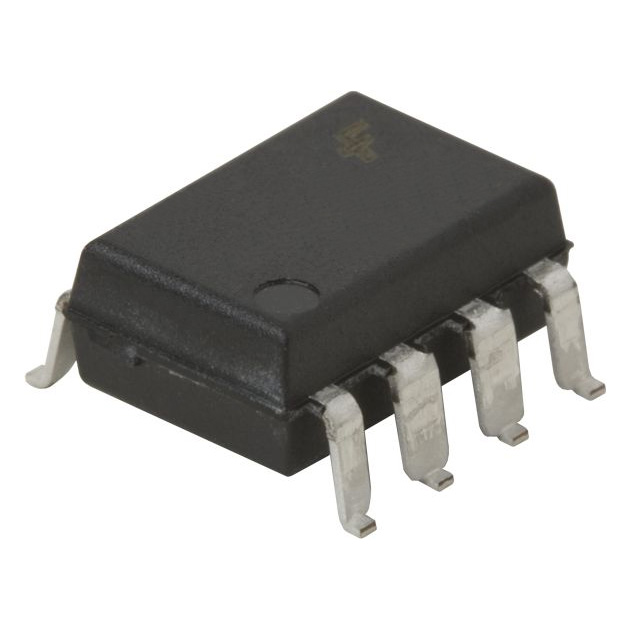

lmages are for reference only.HCPL2530M
LOGIC IC OUTPUT OPTOCOUPLER, 2-E
Datasheet8-DIP (0.300", 7.62mm)
97,047 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 2500Vrms 2 Channel 8-DIP
HCPL2530M
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Fairchild Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Number of Channels | 2 |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | 7% @ 16mA |
| Current Transfer Ratio (Max) | 50% @ 16mA |
| Turn On / Turn Off Time (Typ) | 450ns, 500ns |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 20V |
| Current - Output / Channel | 8mA |
| Voltage - Forward (Vf) (Typ) | 1.45V |
| Current - DC Forward (If) (Max) | 25 mA |
| Vce Saturation (Max) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | HCPL2530 | HCPL2530 | HCPL2530M | HCPL2530S |
| Manufacturer | Texas Instruments | onsemi | onsemi | onsemi |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LOGIC IC OUTPUT OPTOCOUPLER | OPTOISO 2.5KV 2CH TRANS 8DIP | OPTOCOUPLER TRANS OUT 8MDIP | OPTOISO 2.5KV 2CH TRANS 8SMD |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
