HCSP-3BS-1100

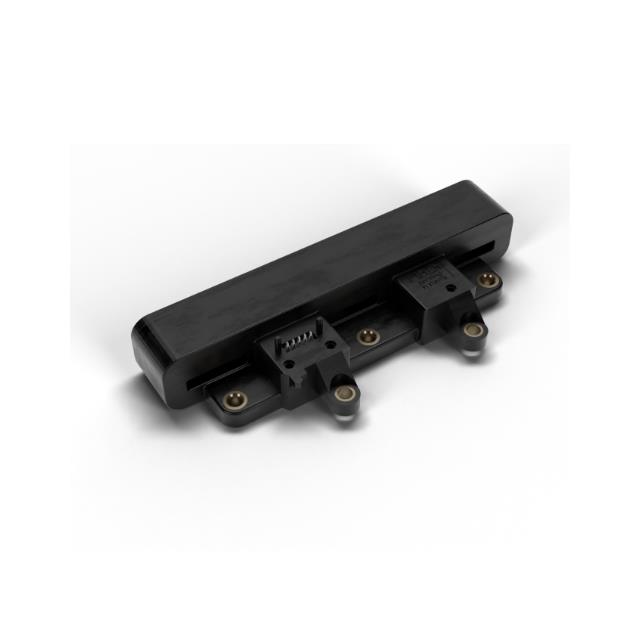

lmages are for reference only.HCSP-3BS-1100
THREE-PHASE OPEN LOOP CURRENT SE
DatasheetModule
17,010 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 1100A 1 Channel Hall Effect, Open Loop Bidirectional Module
HCSP-3BS-1100
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Open Loop |
| Current - Sensing | 1100A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 1.81mV/A |
| Frequency | 70kHz ~ 250kHz |
| Linearity | - |
| Accuracy | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | - |
| Current - Supply (Max) | 48mA |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Bidirectional |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HCSP-3BS-1000 | HCSP-3BS-1200 | HCSP-3BS-0800 | HCSP-3BS-0900 |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | THREE-PHASE OPEN LOOP CURRENT SE | THREE-PHASE OPEN LOOP CURRENT SE | THREE-PHASE OPEN LOOP CURRENT SE | THREE-PHASE OPEN LOOP CURRENT SE |
| Series | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| Packaging | Bulk | Bulk | Bulk | Bulk |
