HDSP-521Y
lmages are for reference only.HDSP-521Y
DISPLAY 7SEG 0.56" DBL YLW 18DIP
Datasheet18-DIP (0.600", 15.24mm)
69,646 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Yellow 7-Segment 2 Character Common Anode 2.1V 20mA 0.732" H x 0.984" W x 0.315" D (18.60mm x 25.00mm x 8.00mm) 18-DIP (0.600", 15.24mm)
HDSP-521Y
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Broadcom Limited |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 2 |
| Size / Dimension | 0.732" H x 0.984" W x 0.315" D (18.60mm x 25.00mm x 8.00mm) |
| Digit/Alpha Size | 0.56" (14.22mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Yellow |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Millicandela Rating | 2.3mcd |
| Wavelength - Peak | 589nm |
| Power Dissipation (Max) | 45mW |
| Package / Case | 18-DIP (0.600", 15.24mm) |
| Base Product Number | HDSP-521 |
| Display Format | - |
| Product Attribute |  |
|
 |
 |

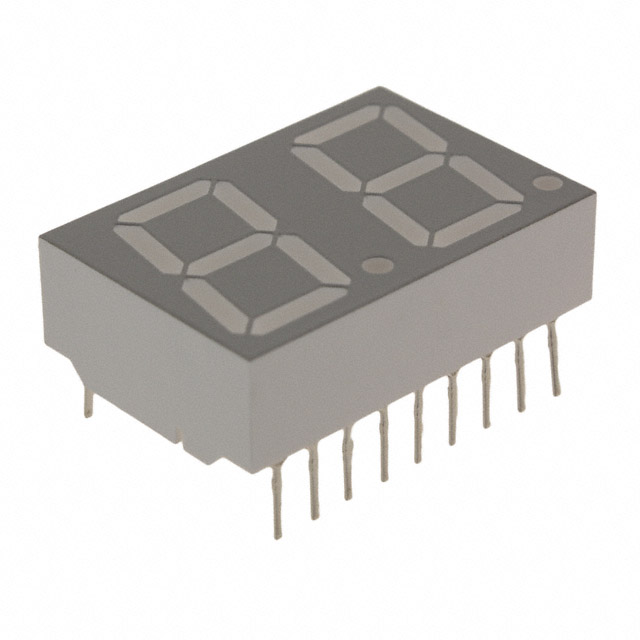

| Part Number | HDSP-521A | HDSP-521A-KL000 | HDSP-521E | HDSP-521G |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |

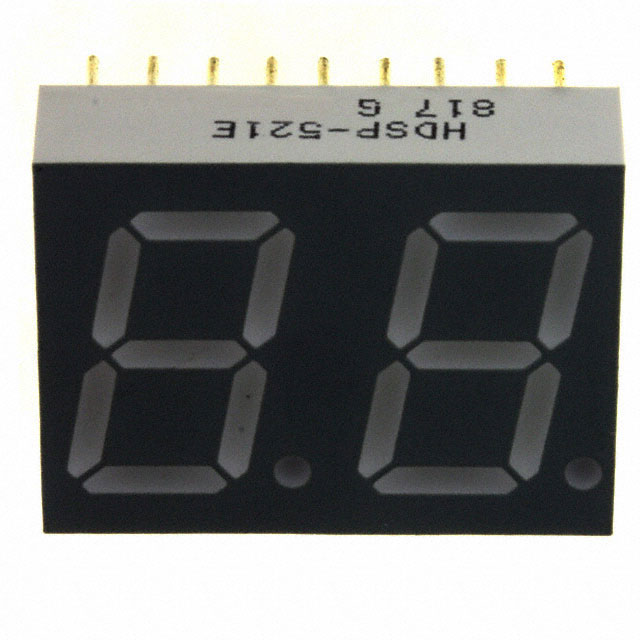

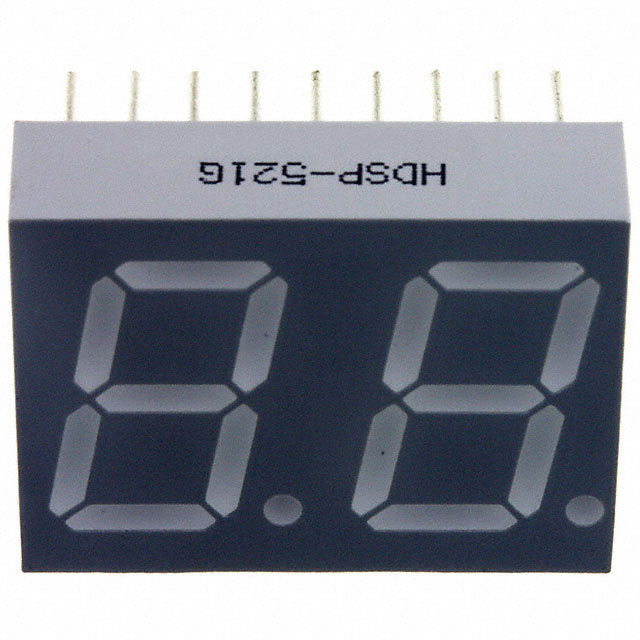

| Description | DISPLAY 7SEG 0.56" DBL RED 18DIP | LED | DISPLAY 7SEG 0.56" DBL RED 18DIP | DISPLAY 7SEG 0.56" DBL GRN 18DIP |
| Series | - | - | - | - |
| Packaging | Tube | Bulk | Tube | Tube |
