HFC0500GS-Z

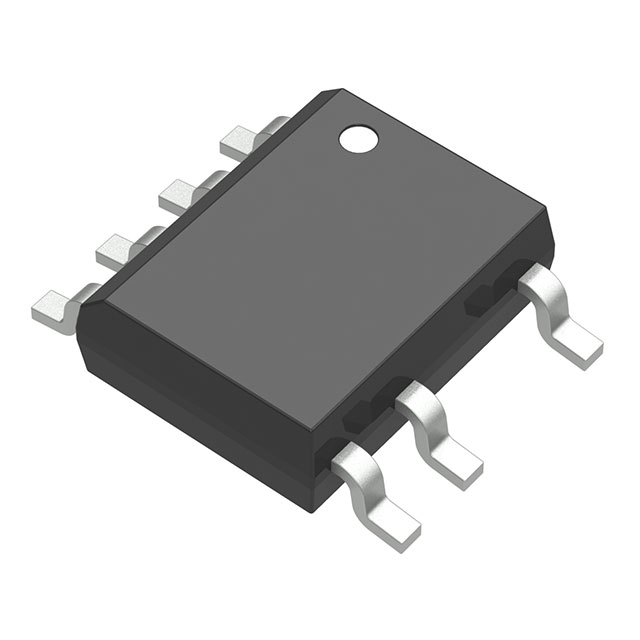

lmages are for reference only.HFC0500GS-Z
IC OFFLINE SWITCH FLYBACK 8SOIC
Datasheet8-SOIC (0.154", 3.90mm Width), 7 Leads
19,039 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Converter Offline Flyback Topology 25kHz 8-SOIC-7A
HFC0500GS-Z
| Category | Integrated Circuits (ICs) - Power Management PMIC - AC DC Converters-Offline Switches |
| Manufacturer | Monolithic Power Systems Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | 790V |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 24V |
| Duty Cycle | 50% |
| Frequency - Switching | 25kHz |
| Power (Watts) | 1.3 W |
| Fault Protection | Over Load, Over Temperature, Over Voltage |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 8-SOIC-7A |
| Mounting Type | Surface Mount |
| Base Product Number | HFC0500 |
| Voltage - Start Up | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | HFC0500GS | HFC0500GS-P | HFC0502GS-P | HFC0511GS |
| Manufacturer | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED FREQUENCY FLYBACK CONTROLL | FIXED FREQUENCY FLYBACK CONTROLL | FIXED FREQUENCY FLYBACK CONTROLL | FIXED FREQUENCY FLYBACK CONTROLL |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR) | Tube |
