HFC5A1201K00
lmages are for reference only.HFC5A1201K00
HFC5A1201K00 = HFC5A COMMERCIA
Datasheet-
80,739 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) 26.5VDC Coil Through Hole
HFC5A1201K00
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Series | HFC, CII |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 26.5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 115VAC, 28VDC - Max |
| Load - Max Switching | 575VA, 140W |
| Coil Current | 37.9 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Hermetically |
| Coil Insulation | - |
| Must Operate Voltage | 16 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 6 ms |
| Release Time | 6 ms |
| Operating Temperature | -55°C ~ 85°C |
| Contact Material | Silver Alloy |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 700 Ohms |
| Base Product Number | 1617026 |
| Product Attribute | |
|
 |
|

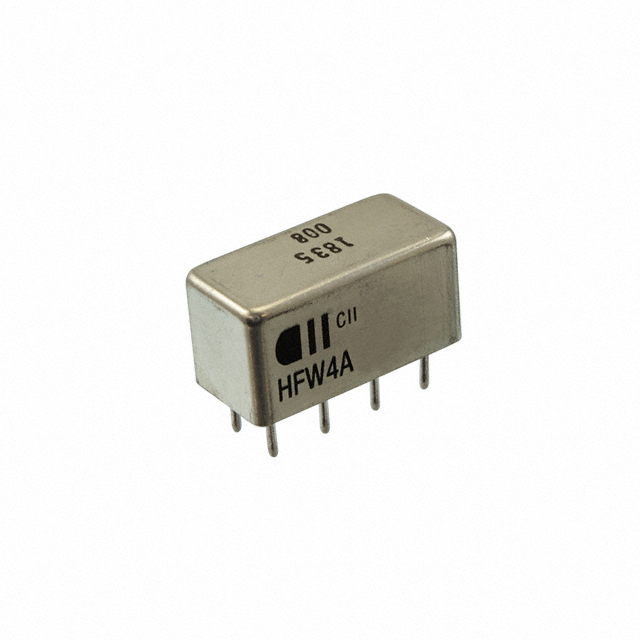

| Part Number | HF354 | HFW4A1131D00 | HFW4A1201D00 | HFW4A1201J00 |
| Manufacturer | TE Connectivity | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| RoHS Status | RoHS Compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | Electromechanical Relay, SPDT, 1 | RELAY GEN PURP DPDT 4A 26.5-32V | RELAY GEN PURPOSE DPDT 4A 26.5V | HFW4A1201J00 = HFW4A 1/2 SIZE |
| Series | TE Connectivity | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| Packaging | Tape & Reel (TR) | Bulk | Bulk | Bulk |
