HFZ 2012PF-601T23
lmages are for reference only.HFZ 2012PF-601T23
600 OHMS @ 100 MHZ 1 POWER, SIGN
Datasheet0805 (2012 Metric)
59,052 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
600 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0805 (2012 Metric) 2.3A 60mOhm
HFZ 2012PF-601T23
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Series | HFZ2012PF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 600 Ohms @ 100 MHz |
| Current Rating (Max) | 2.3A |
| DC Resistance (DCR) (Max) | 60mOhm |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 0805 (2012 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.041" (1.05mm) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Features | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

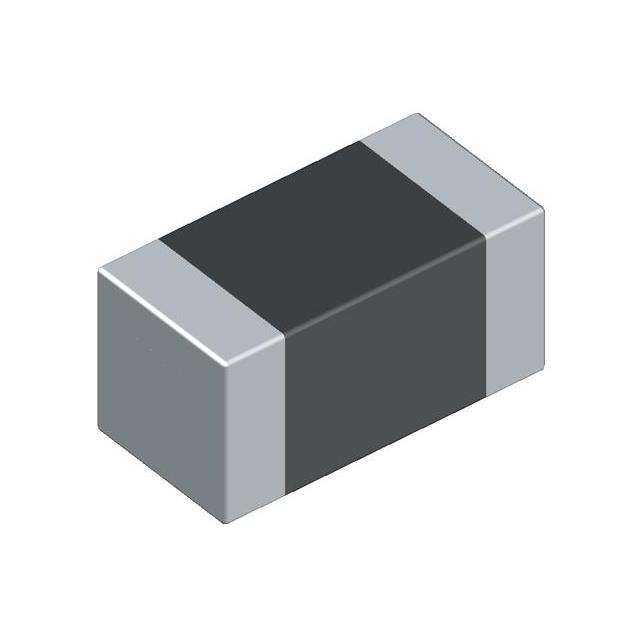

| Part Number | HFZ 2012PF-102T16 | HFZ 2012PF-111T50 | HFZ 2012PF-181T40 | HFZ 2012PF-300T85 |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 1 KOHMS @ 100 MHZ 1 POWER, SIGNA | 110 OHMS @ 100 MHZ 1 POWER, SIGN | 180 OHMS @ 100 MHZ 1 POWER, SIGN | 30 OHMS @ 100 MHZ 1 POWER, SIGNA |
| Series | HFZ2012PF | HFZ2012PF | HFZ2012PF | HFZ2012PF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
