HFZ 3216PF-102T20
lmages are for reference only.HFZ 3216PF-102T20
1 KOHMS @ 100 MHZ 1 POWER, SIGNA
Datasheet1206 (3216 Metric)
14,142 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 kOhms @ 100 MHz 1 Power Line Ferrite Bead 1206 (3216 Metric) 2A 75mOhm
HFZ 3216PF-102T20
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Series | HFZ3216PF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 1 kOhms @ 100 MHz |
| Current Rating (Max) | 2A |
| DC Resistance (DCR) (Max) | 75mOhm |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 1206 (3216 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.051" (1.30mm) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Features | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

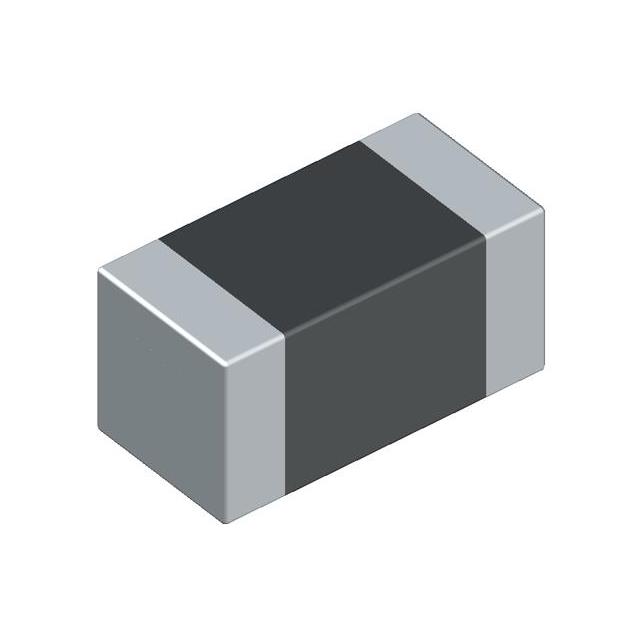

| Part Number | HFZ 3216PF-121T60 | HFZ 3216PF-271T45 | HFZ 3216PF-471T40 | HFZ 3216PF-500T120 |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 120 OHMS @ 100 MHZ 1 POWER, SIGN | 270 OHMS @ 100 MHZ 1 POWER, SIGN | 470 OHMS @ 100 MHZ 1 POWER, SIGN | 50 OHMS @ 100 MHZ 1 POWER, SIGNA |
| Series | HFZ3216PF | HFZ3216PF | HFZ3216PF | HFZ3216PF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
