HGTD1N120BNS9A
lmages are for reference only.Payment Methods
Delivery Services
IGBT NPT 1200 V 5.3 A 60 W Surface Mount TO-252AA
HGTD1N120BNS9A
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 5.3 A |
| Current - Collector Pulsed (Icm) | 6 A |
| Vce(on) (Max) @ Vge, Ic | 2.9V @ 15V, 1A |
| Power - Max | 60 W |
| Switching Energy | 70µJ (on), 90µJ (off) |
| Input Type | Standard |
| Gate Charge | 14 nC |
| Td (on/off) @ 25°C | 15ns/67ns |
| Test Condition | 960V, 1A, 82Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252AA |
| Reverse Recovery Time (trr) | - |
| Base Product Number | HGTD1N120 |
| Product Attribute |  |
|
 |
|

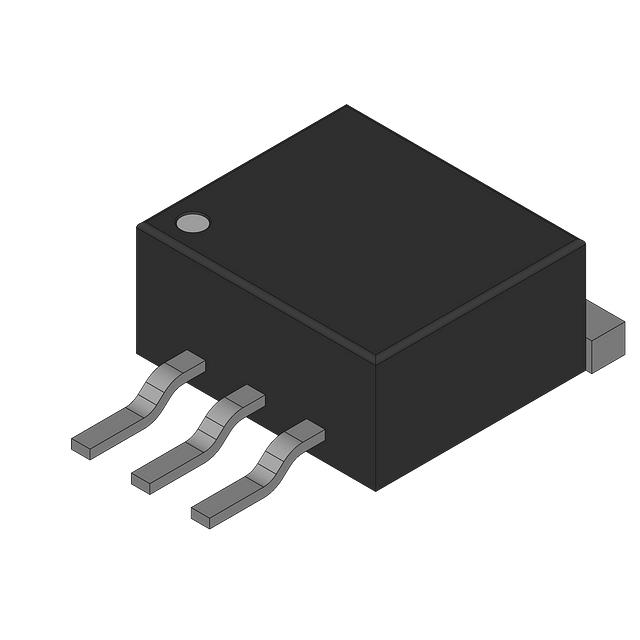

| Part Number | HGTD10N40F1S | HGTD10N50F1 | HGTD3N60A4S | HGTD3N60B3 |
| Manufacturer | Harris Corporation | Harris Corporation | Fairchild Semiconductor | Harris Corporation |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | 10A, 400V N-CHANNEL IGBT | IGBT 500V 12A IPAK | IGBT, 17A, 600V, N-CHANNEL | IGBT 600V 7A IPAK |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
