Product CatalogPart Number
HGTP3N60B3
Manufacturer
Harris CorporationDescription
7A, 600V, UFS N-CHANNEL IGBT
Datasheet
DatasheetPackage
TO-220-3
In Stock
50,292 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

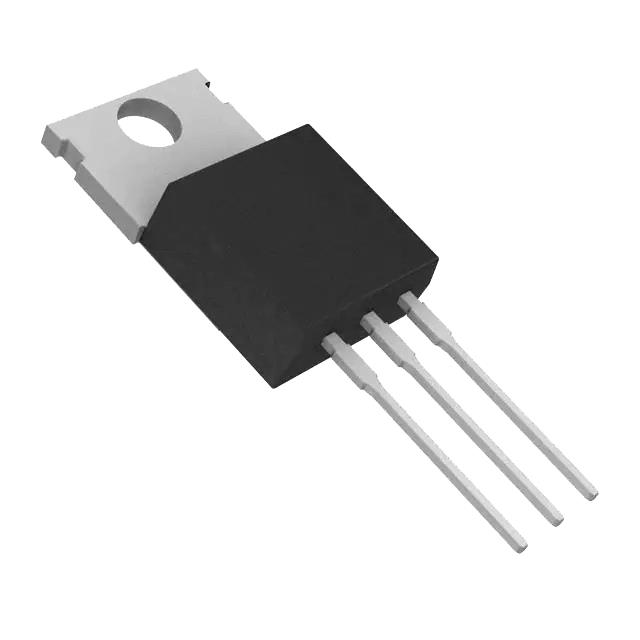

HGTP3N60B3
HGTP3N60B3
lmages are for reference only.Payment Methods
Delivery Services
IGBT 600 V 7 A 33.3 W Through Hole TO-220
Quick Inquiry
HGTP3N60B3
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Harris Corporation |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 7 A |
| Current - Collector Pulsed (Icm) | 20 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 3.5A |
| Power - Max | 33.3 W |
| Switching Energy | 66µJ (on), 88µJ (off) |
| Input Type | Standard |
| Gate Charge | 21 nC |
| Td (on/off) @ 25°C | 18ns/105ns |
| Test Condition | 480V, 3.5A, 82Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
| Reverse Recovery Time (trr) | 16 ns |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |
| Part Number | HGTP3N60B3R4724 | HGTP3N60A4 | HGTP3N60A4 | HGTP3N60A4D |
| Manufacturer | Harris Corporation | onsemi | Harris Corporation | onsemi |
| RoHS Status | Not applicable | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 7A, 600V, UFS N-CHANNEL IGBT | IGBT 600V 17A 70W TO220AB | IGBT 600V 17A TO220-3 | IGBT 600V 17A 70W TO220AB |
| Series | * | - | - | - |
| Packaging | Bulk | Tube | Tube | Tube |
