HI1-5047A-7

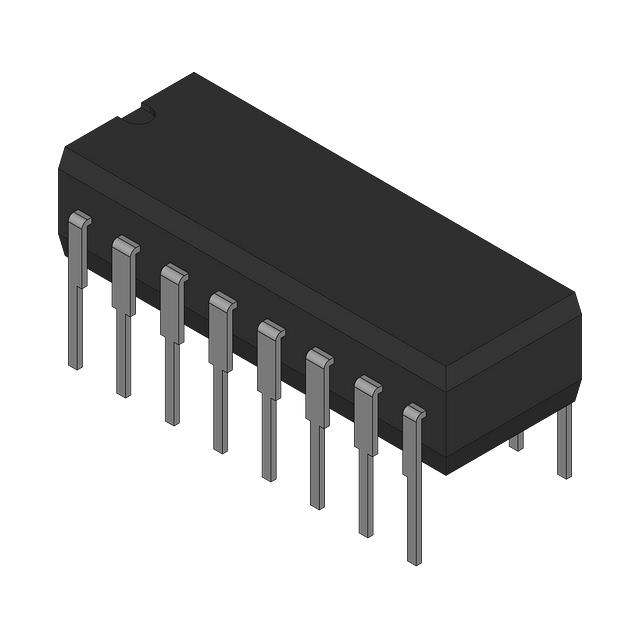

lmages are for reference only.HI1-5047A-7
IC SWITCH 4PSTX1 45OHM 16CERDIP
Datasheet16-CDIP (0.300", 7.62mm)
23,386 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 Circuit IC Switch 1:1 45Ohm 16-CERDIP
HI1-5047A-7
| Category | Integrated Circuits (ICs) - Interface - Analog Switches-Multiplexers-Demultiplexers |
| Manufacturer | Harris Corporation |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Switch Circuit | 4PST |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 45Ohm |
| Channel-to-Channel Matching (ΔRon) | 1Ohm |
| Voltage - Supply, Single (V+) | 15V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 500ns, 500ns |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 11pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -88dB @ 100kHz |
| Operating Temperature | 0°C ~ 75°C |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|
| Part Number | HI1-5047A-2X102 | HI1-5047A-2X102 | HI1-5047A-5 | HI1-5047A-5 |
| Manufacturer | Harris Corporation | Harris Corporation | Harris Corporation | Harris Corporation |
| RoHS Status | Not applicable | Not applicable | RoHS non-compliant | RoHS non-compliant |
| Description | 4PDT ANALOG SWITCH, 1 CHANNEL, 2 | 4PDT ANALOG SWITCH, 1 CHANNEL, 2 | IC SWITCH 4PSTX1 45OHM 16CERDIP | IC SWITCH 4PSTX1 45OHM 16CERDIP |
| Series | * | * | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
