HIP2101EIB
lmages are for reference only.HIP2101EIB

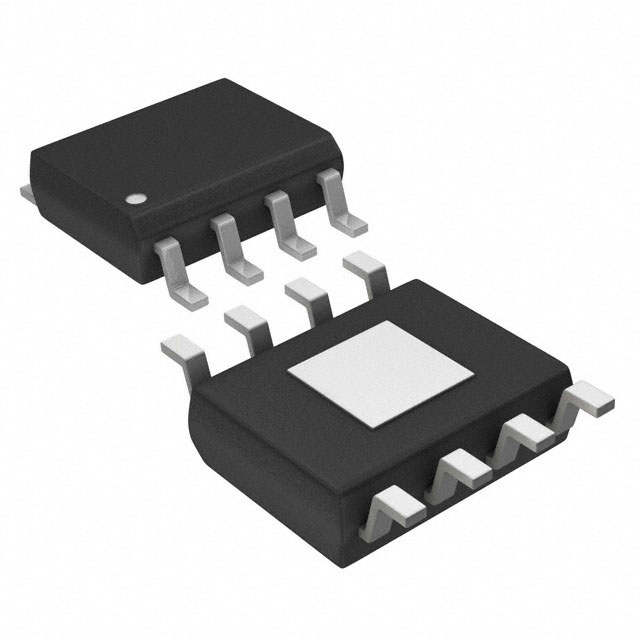

IC GATE DRVR HALF-BRIDGE 8SOIC
Datasheet8-SOIC (0.154", 3.90mm Width) Exposed Pad
35,376 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Half-Bridge Gate Driver IC Non-Inverting 8-SOIC-EP
HIP2101EIB
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | Renesas Electronics Corporation |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 9V ~ 14V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 114 V |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOIC-EP |
| Base Product Number | HIP2101 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HIP2101EIBT | HIP2101EIBZ | HIP2101EIBZT | HIP2101IB |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | IC GATE DRVR HALF-BRIDGE 8SOIC | IC GATE DRVR HALF-BRIDGE 8SOIC | IC GATE DRVR HALF-BRIDGE 8SOIC | IC GATE DRVR HALF-BRIDGE 8SOIC |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
