HM72B-06R22LFTR13
lmages are for reference only.HM72B-06R22LFTR13
FIXED IND 220NH 20.3A 2.8 MOHM
DatasheetNonstandard
44,254 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
220 nH Unshielded Molded Inductor 20.3 A 2.8mOhm Max Nonstandard
HM72B-06R22LFTR13
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TT Electronics/BI Magnetics |
| Series | HM72B |
| Packaging | Cut Tape (CT) |
| RoHS Status | |
| Type | Molded |
| Material - Core | - |
| Inductance | 220 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 20.3 A |
| Current - Saturation (Isat) | 40A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.285" L x 0.268" W (7.23mm x 6.80mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Base Product Number | HM72B |
| Product Attribute |  |
 |
 |
 |

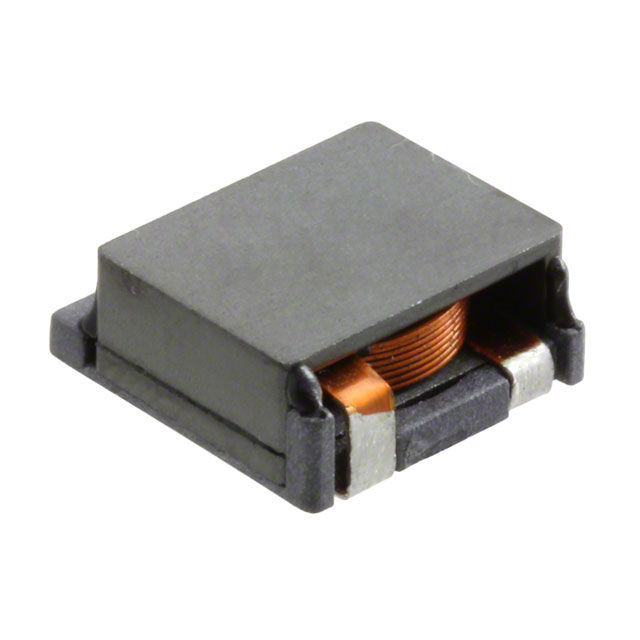

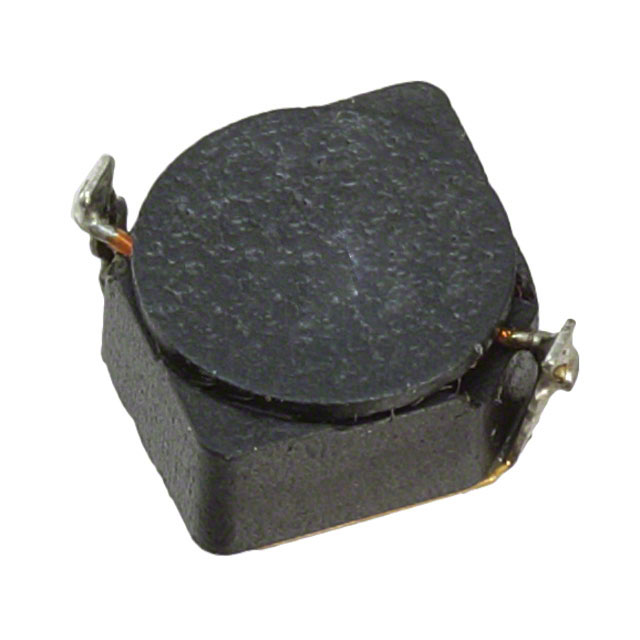

| Part Number | HM72B-066R8LFTR13 | HM72B-06R15LFTR13 | HM65-8R2LFTR13 | HM66-50100LFTR13 |
| Manufacturer | TT Electronics/BI Magnetics | TT Electronics/BI Magnetics | TT Electronics/BI Magnetics | TT Electronics/BI Magnetics |
| RoHS Status | ||||
| Description | FIXED IND 6.8UH 4.1A 68 MOHM SMD | FIXED IND 150NH 23.3A 2.5 MOHM | FIXED IND 8.2UH 4.5A 11.4 MOHM | FIXED IND 10UH 1.3A 65 MOHM SMD |
| Series | TT Electronics/BI Magnetics | TT Electronics/BI Magnetics | TT Electronics/BI Magnetics | TT Electronics/BI Magnetics |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) |
