HMC637ALP5ETR
lmages are for reference only.HMC637ALP5ETR
IC RF AMP VSAT 0HZ-6GHZ 32QFN
Datasheet32-VFQFN Exposed Pad
25,767 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Amplifier IC VSAT 0Hz ~ 6GHz 32-QFN (5x5)
HMC637ALP5ETR
| Category | RF and Wireless - RF Amplifiers - |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Frequency | 0Hz ~ 6GHz |
| P1dB | 29dBm |
| Gain | 13dB |
| Noise Figure | 5dB |
| RF Type | VSAT |
| Voltage - Supply | 12V |
| Current - Supply | 400mA |
| Test Frequency | - |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
| Base Product Number | HMC637 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

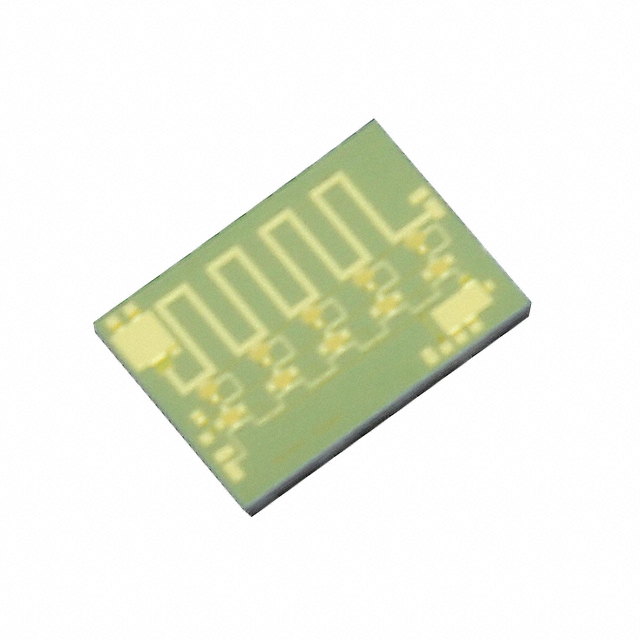

| Part Number | HMC637A | HMC637A-SX | HMC637ALP5E | HMC760LC4B |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC RF AMP VSAT 0HZ-6GHZ DIE | IC RF AMP VSAT 0HZ-6GHZ DIE | IC RF AMP VSAT 0HZ-6GHZ 32QFN | IC RF AMP GPS 0HZ-5GHZ 24QFN |
| Series | - | - | - | - |
| Packaging | Tray | Tray | Strip | Strip |
