HMD904D
lmages are for reference only.HMD904D
LTCC LOW PASS FILTER, 2300MHZ -
Datasheet0603 (1608 Metric), 6 PC Pad
63,056 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.495GHz Center Frequency Low Pass RF Filter (Radio Frequency) 390MHz Bandwidth 0.5dB 0603 (1608 Metric), 6 PC Pad
HMD904D
| Category | Filters - RF Filters - |
| Manufacturer | SOSHIN ELECTRIC CO., LTD. |
| Series | HMD |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Frequency | 2.495GHz Center |
| Bandwidth | 390MHz |
| Filter Type | Low Pass |
| Ripple | 0.3dB |
| Insertion Loss | 0.5dB |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric), 6 PC Pad |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height (Max) | 0.024" (0.60mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

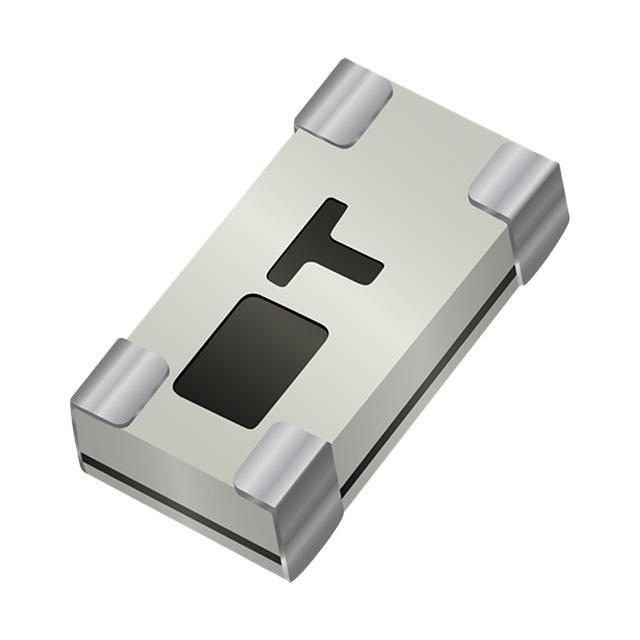

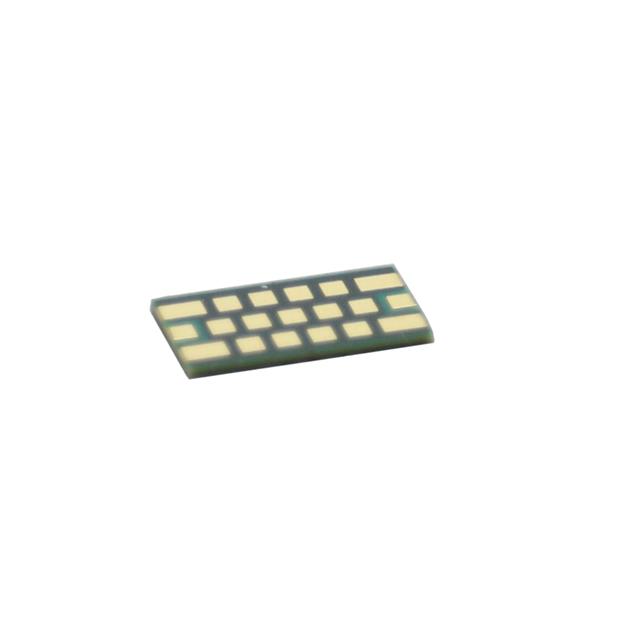

| Part Number | HMD9116T | HMD9119D | HP1206A1100ASTR\500 | HF0BA0850A700 |
| Manufacturer | SOSHIN ELECTRIC CO., LTD. | SOSHIN ELECTRIC CO., LTD. | KYOCERA AVX | KYOCERA AVX |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LTCC BAND PASS FILTER, 4900MHZ - | LTCC BAND PASS FILTER, 2400MHZ - | RF FILTER HIGH PASS 1206 | RF FILTER HI PASS 850MHZ 19ULGA |
| Series | - | - | HP1206 | HF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Bulk |
